Individual hose record

4650823 Hose Repair Specifications

Excavator · Hitachi · ZX250LC-6N · Attachments – Breaker

Finished length1,650 mm

Locate this hose

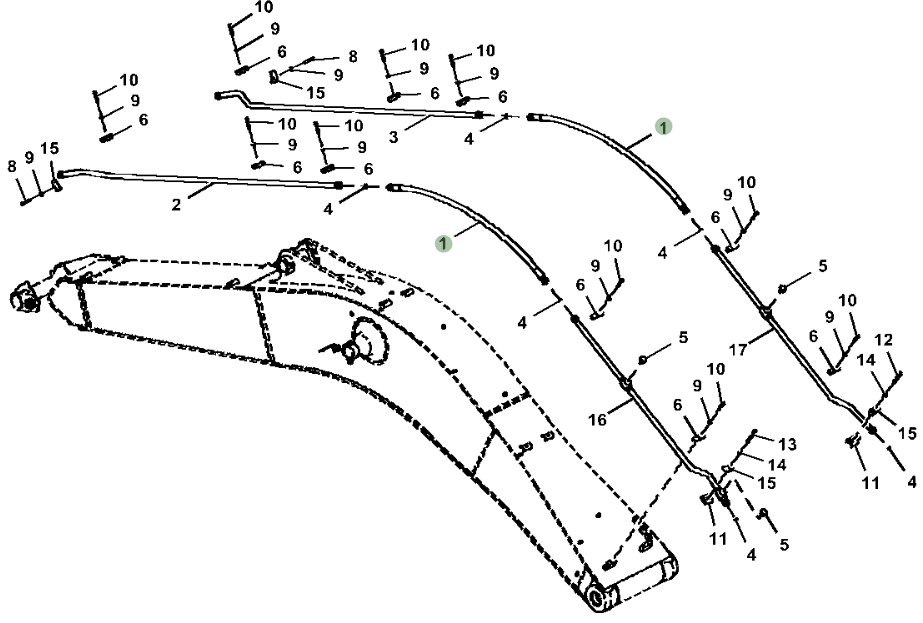

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4650823 before removing the hose.

Hitachi ZX250LC-6N installation diagram showing hydraulic hose 4650823 at Pipe No. 1 — **Hitachi ZX250LC-6N**Part 4650823 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4650823
Diagram pipe number: 1
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 1,650 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 3

4648204

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4250888

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,200 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

FF509627

Installation route: 过渡阀块(破碎器)~回油铁管(液压油箱)

Length: 800 mm
Specification: DN31;1SN-20;6.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26

4453063

Installation route: 中转接头~分配阀上

Length: 630 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4308972

Installation route: 分配阀~过渡阀块(破碎器)

Length: 1,000 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26

FF532274

Installation route: 电磁阀~电磁阀(破碎器)

Length: 1,850 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

FF532370

Installation route: 破碎器踏板~控制阀(破碎器)

Length: 1,260 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 44

4449378

Installation route: 过渡阀块(破碎器)~电磁阀(破碎器)

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
