Individual hose record
4364414 Hose Repair Specifications
Excavator · Hitachi · ZX35U-5N · Hydraulic Tank
Finished length1,340 mm
Locate this hose

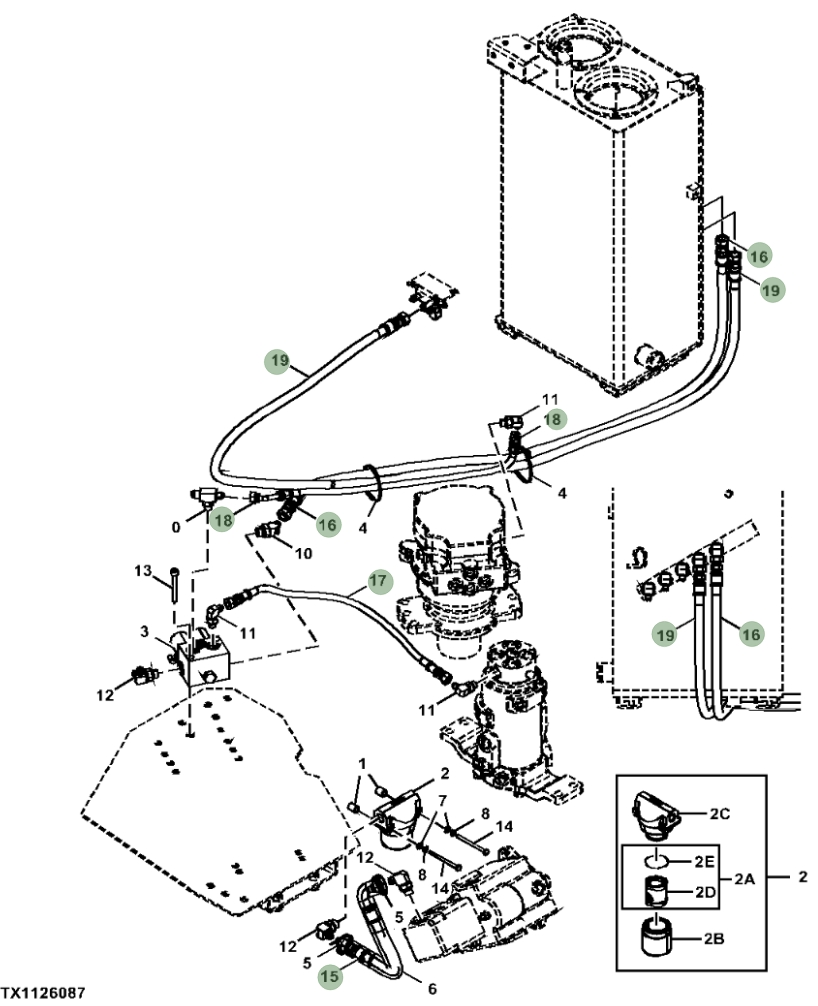

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4364414 before removing the hose.
Repair specifications
- Part number
- 4364414
- Diagram pipe number
- 16
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,340 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
