Individual hose record
4269812 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3C · Swivel Joint
Finished length2,500 mm
Locate this hose

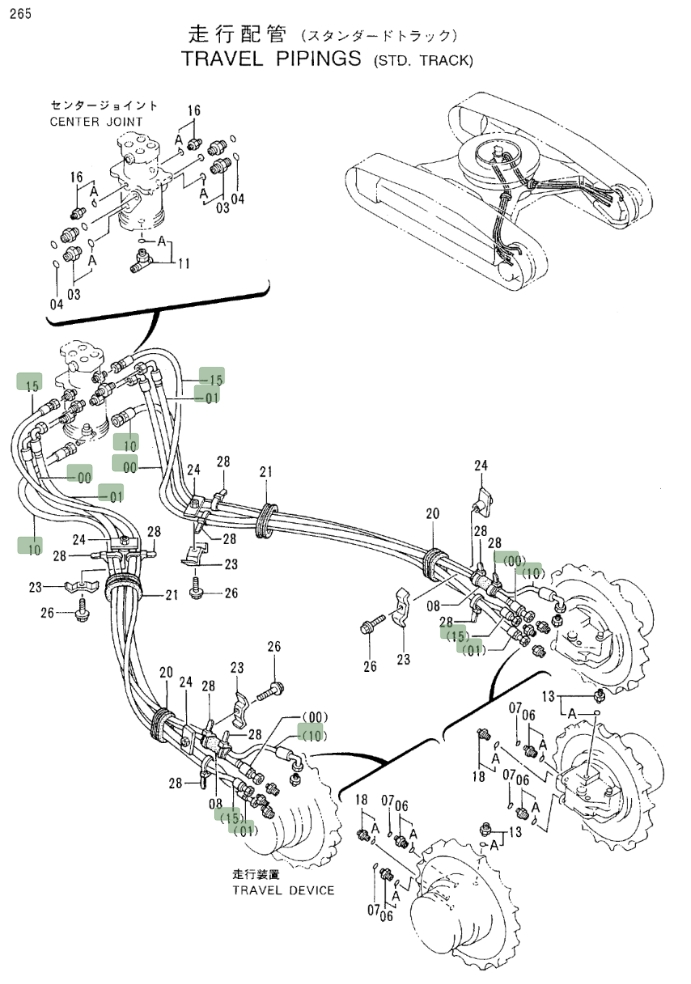

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4269812 before removing the hose.
Repair specifications
- Part number
- 4269812
- Diagram pipe number
- 15
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 2,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
