Individual hose record

KHJ13800 Hose Repair Specifications

Excavator · Case · CX290D LC MH · Control Valve

Finished length1,350 mm

Locate this hose

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number KHJ13800 before removing the hose.

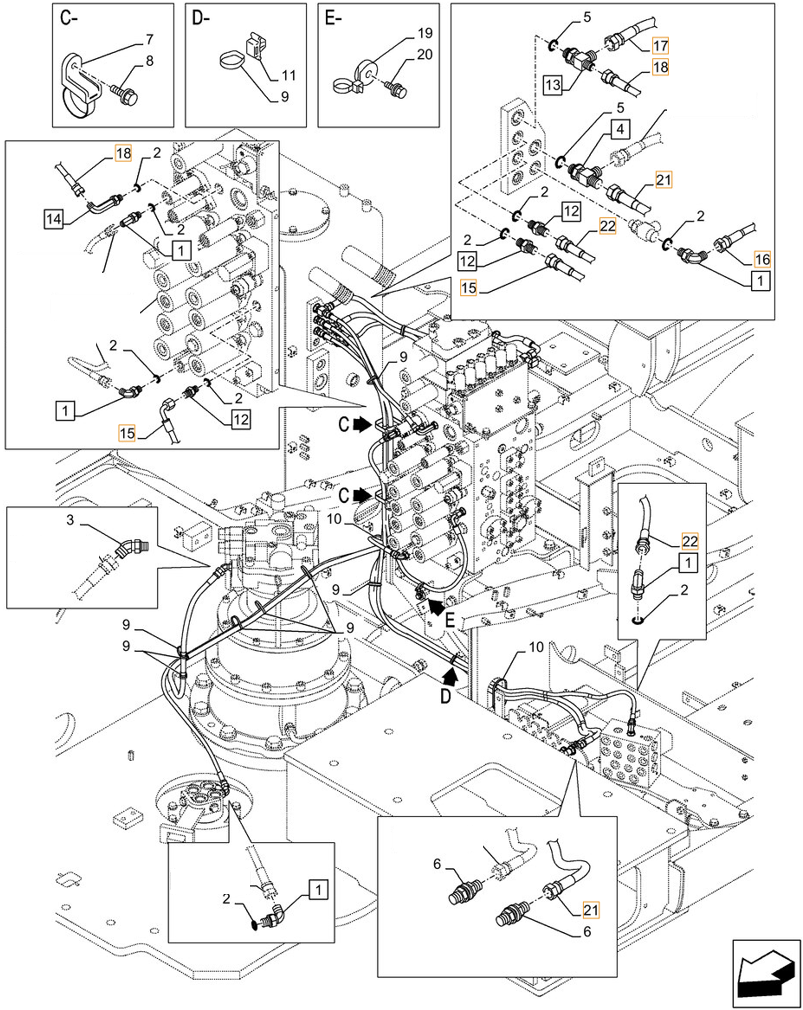

Case CX290D LC MH installation diagram showing hydraulic hose KHJ13800 at Pipe No. 15 — **Case CX290D LC MH**Part KHJ13800 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: KHJ13800
Diagram pipe number: 15
Installation route: 分配阀前左~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,350 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

KHJ2149

Installation route: 分配阀左~分配阀左

Length: 360 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 16

KHJ2195

Installation route: 分配阀左~液压油箱

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. N28-O28

KHJ2087

Installation route: 分配阀后左~电磁阀(分配阀)

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. G8

KHJ2054

Installation route: 分配阀前~接头(进回油阀)

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. N25-O25

KHJ2194

Installation route: 分配阀前右~电磁阀(分配阀)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. N23-O23

KHJ2181

Installation route: 分配阀前左~电磁阀(分配阀)

Length: 580 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

KHJ2240

Installation route: 分配阀左~分配阀左

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 18

KHJ2394

Installation route: 分配阀前右~液压油箱

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
