Individual hose record

DS2053883 Hose Repair Specifications

Excavator · Doosan · DX140W · Grease Lines

Finished length2,660 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS2053883 before removing the hose.

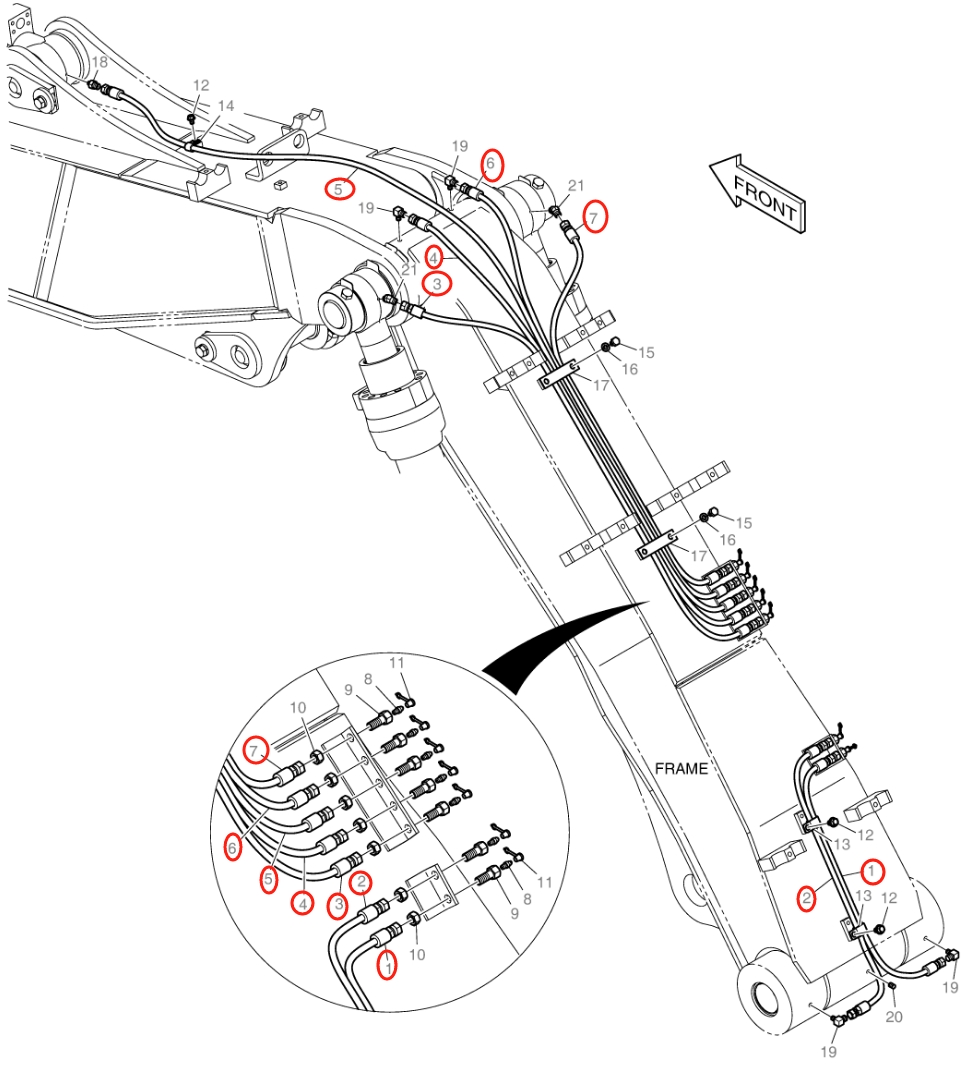

Doosan DX140W installation diagram showing hydraulic hose DS2053883 at Pipe No. 5 — **Doosan DX140W**Part DS2053883 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: DS2053883
Diagram pipe number: 5
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,660 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
