4345675 Hose Repair Specifications

Excavator · Hitachi · ZX370 · Boom Assembly

Finished length900 mm

Locate this hose

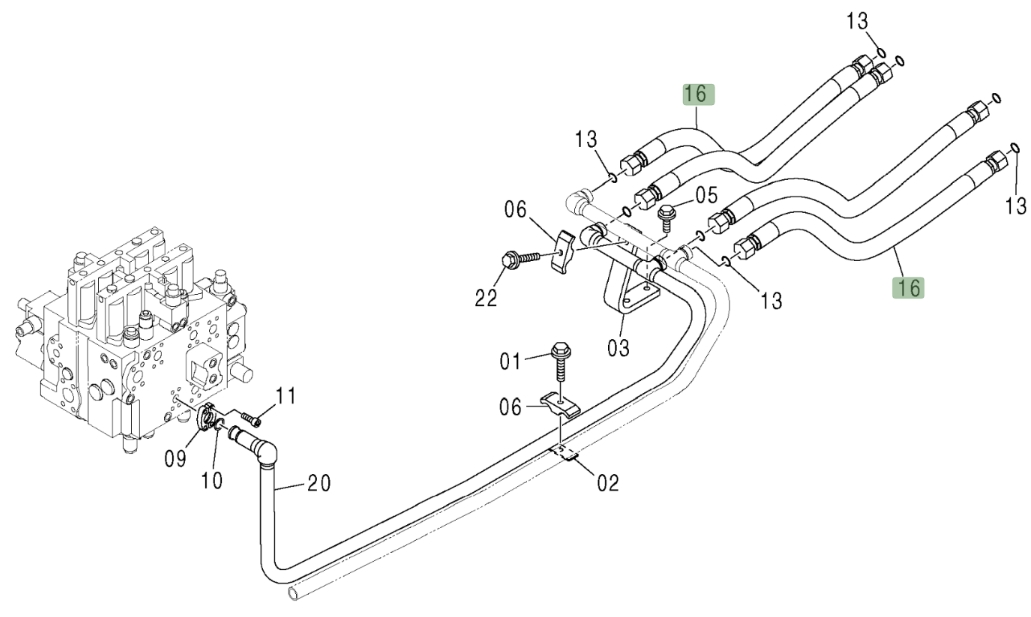

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4345675 before removing the hose.

Part number: 4345675
Diagram pipe number: 16
Installation route: 大臂油缸
Hose specification: DN25;4SH-16;38.8MPa
Finished length: 900 mm
Working pressure: 38.8 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 12

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 900 mm
Specification: DN32;6SH-20;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 12A

Installation route: 大臂左2

Length: 1,780 mm
Specification: DN32;6SH-20;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

Diagram Pipe No. 12

Installation route: 大臂左2

Length: 1,780 mm
Specification: DN32;6SH-20;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

Diagram Pipe No. 13

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 900 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
