Individual hose record

4349412 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5G · Hydraulic Tank

Finished length1,050 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4349412 before removing the hose.

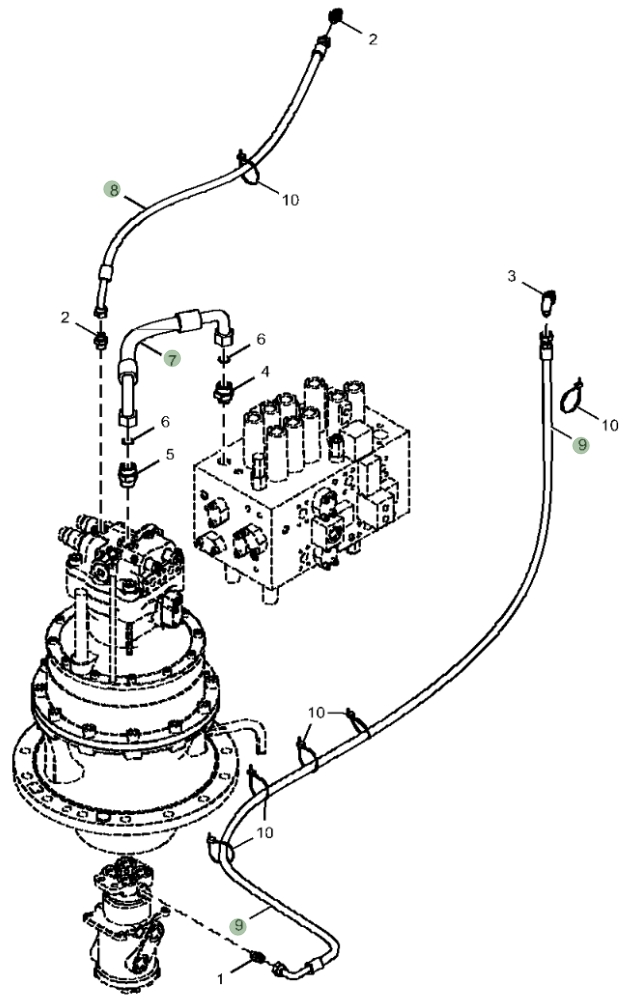

Hitachi ZX350LC-5G installation diagram showing hydraulic hose 4349412 at Pipe No. 8 — Hitachi ZX350LC-5GPart 4349412 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4349412
Diagram pipe number: 8
Installation route: 回油铁管(液压油箱)~回转马达
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,050 mm
Working pressure: 16 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 24

4450910

Installation route: 液压油箱~中转接头

Length: 1,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4405562

Installation route: 回油铁管(液压油箱)~回转马达

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25

4648580

Installation route: 液压油箱~电磁阀

Length: 390 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 26

4313426

Installation route: 回油铁管(液压油箱)~先导滤芯

Length: 950 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4710123

Installation route: 液压油箱~进回油阀

Length: 4,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
