4452734 Hose Repair Specifications

Excavator · Hitachi · ZX85USB-3 · Control Lever

Finished length400 mm

Locate this hose

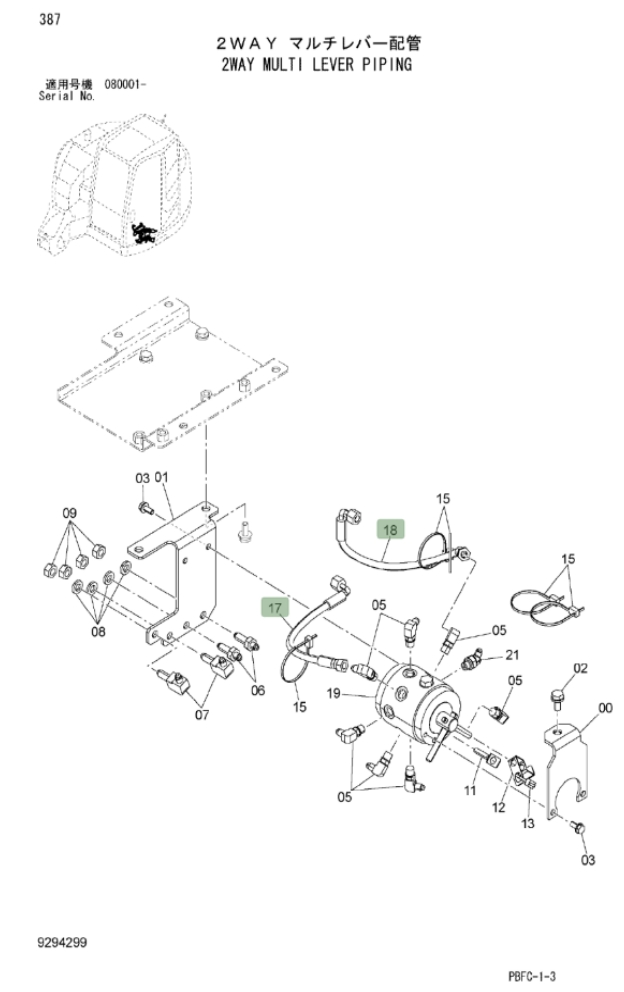

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4452734 before removing the hose.

Hitachi ZX85USB-3 installation diagram showing hydraulic hose 4452734 at Pipe No. 18 — Hitachi ZX85USB-3Part 4452734 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4452734
Diagram pipe number: 18
Installation route: 模式转换阀~中转接头
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 400 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
