Individual hose record

4618606 Hose Repair Specifications

Excavator · Hitachi · ZX85USB-3 · Control Lever

Finished length520 mm

Locate this hose

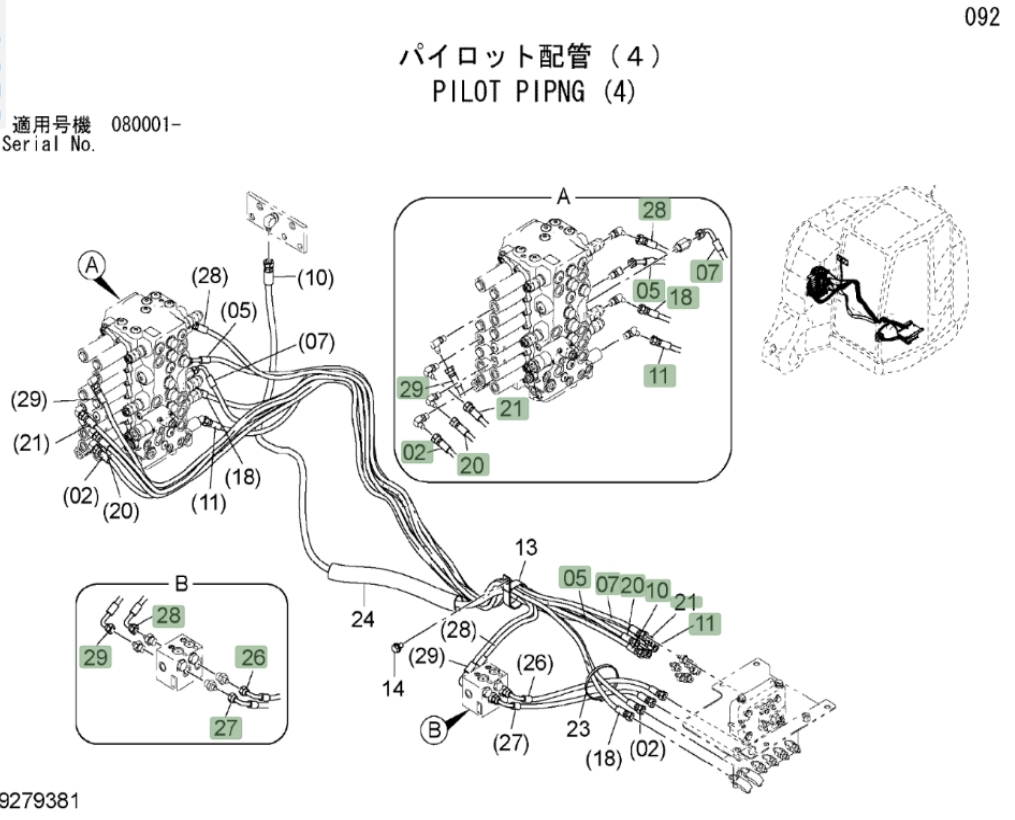

Installation diagram — Pipe No. 26

Locate Pipe No. 26 in the diagram, then confirm part number 4618606 before removing the hose.

Hitachi ZX85USB-3 installation diagram showing hydraulic hose 4618606 at Pipe No. 26 — Hitachi ZX85USB-3Part 4618606 · Pipe No. 26Open full-size diagram

Repair specifications

Part number: 4618606
Diagram pipe number: 26
Installation route: 接线板(中转接头)~过渡阀块(中转接头)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 520 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 27

4470392

Installation route: 接线板(中转接头)~过渡阀块(中转接头)

Length: 550 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4452734

Installation route: 模式转换阀~中转接头

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4452734

Installation route: 中转接头~接线板(中转接头)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
