Individual hose record
4448751 Hose Repair Specifications
Excavator · Hitachi · ZX135US · Hydraulic Tank
Finished length1,200 mm
Locate this hose

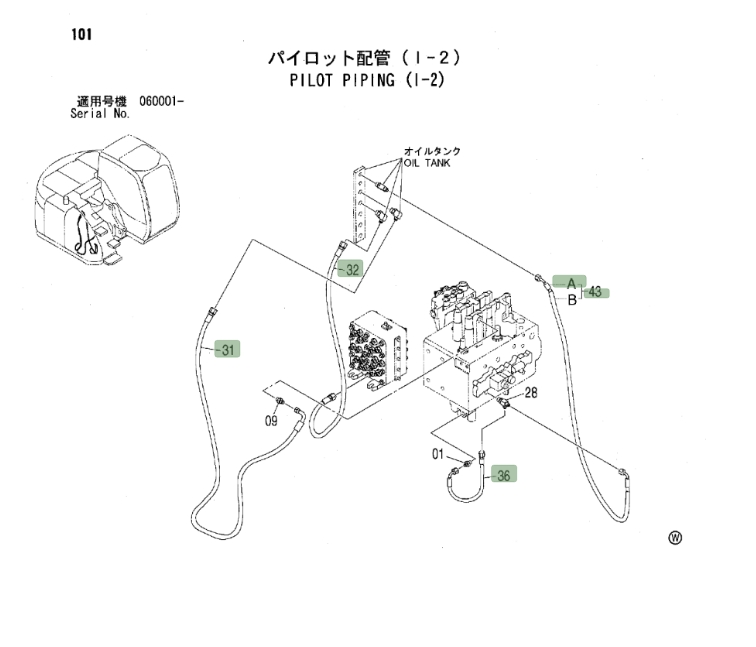

Installation diagram — Pipe No. 32
Locate Pipe No. 32 in the diagram, then confirm part number 4448751 before removing the hose.
Repair specifications
- Part number
- 4448751
- Diagram pipe number
- 32
- Installation route
- 液压油箱~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
