Individual hose record

4295191 Hose Repair Specifications

Excavator · Hitachi · EX400LC · Swivel Joint

Finished length3,120 mm

Locate this hose

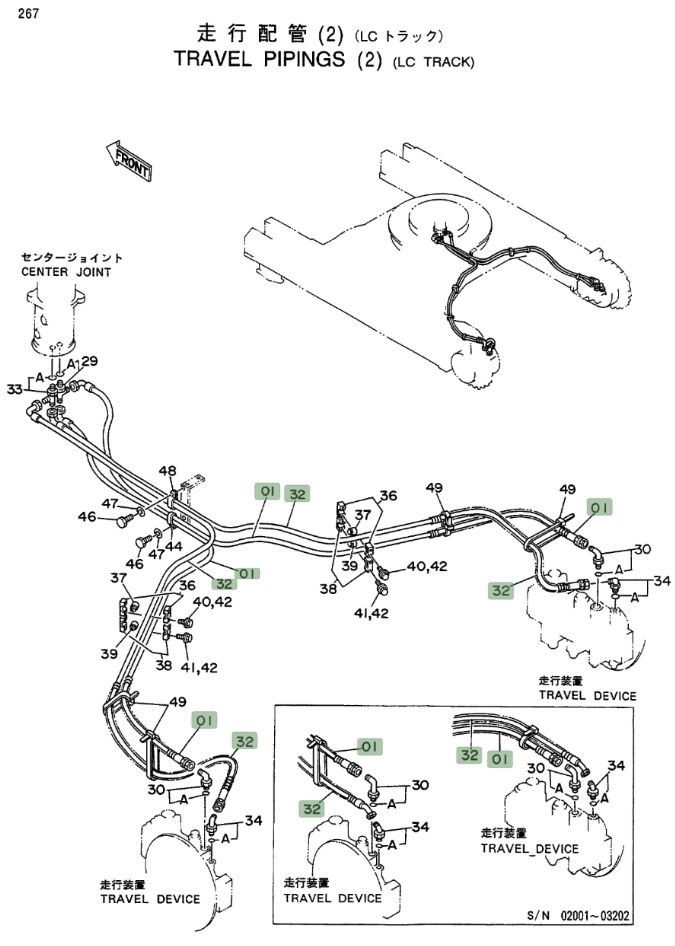

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number 4295191 before removing the hose.

Hitachi EX400LC installation diagram showing hydraulic hose 4295191 at Pipe No. 32 — Hitachi EX400LCPart 4295191 · Pipe No. 32Open full-size diagram

Repair specifications

Part number: 4295191
Diagram pipe number: 32
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,120 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 2
