Individual hose record

KHJ2082 Hose Repair Specifications

Excavator · Case · CX470C · Grease Lines

Finished length3,400 mm

Locate this hose

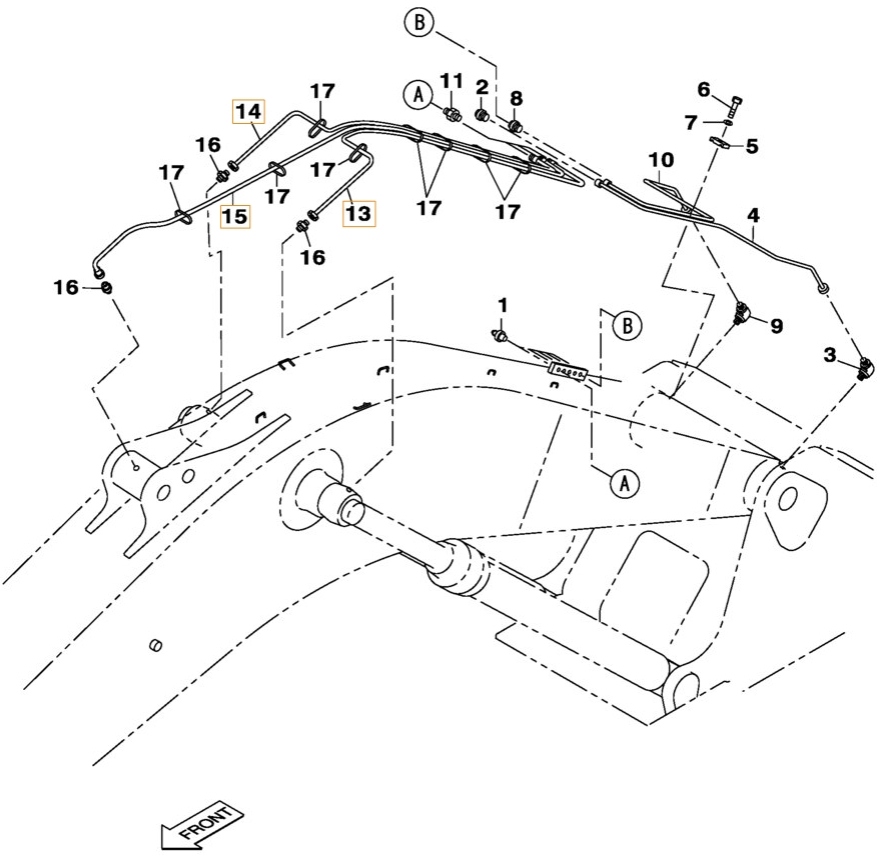

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number KHJ2082 before removing the hose.

Case CX470C installation diagram showing hydraulic hose KHJ2082 at Pipe No. 14
Case CX470CPart KHJ2082 · Pipe No. 14Open full-size diagram

Repair specifications

Part number
KHJ2082
Diagram pipe number
14
Installation route
Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification
DN6;1SN-04;22.5MPa
Finished length
3,400 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 14

KHJ2083

Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管

Length
3,500 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
