- Length
- 1,550 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Individual hose record
DS2121008 Hose Repair Specifications
Excavator · Doosan · DX160LC-5 · Hydraulic Tank
Finished length720 mm
Locate this hose

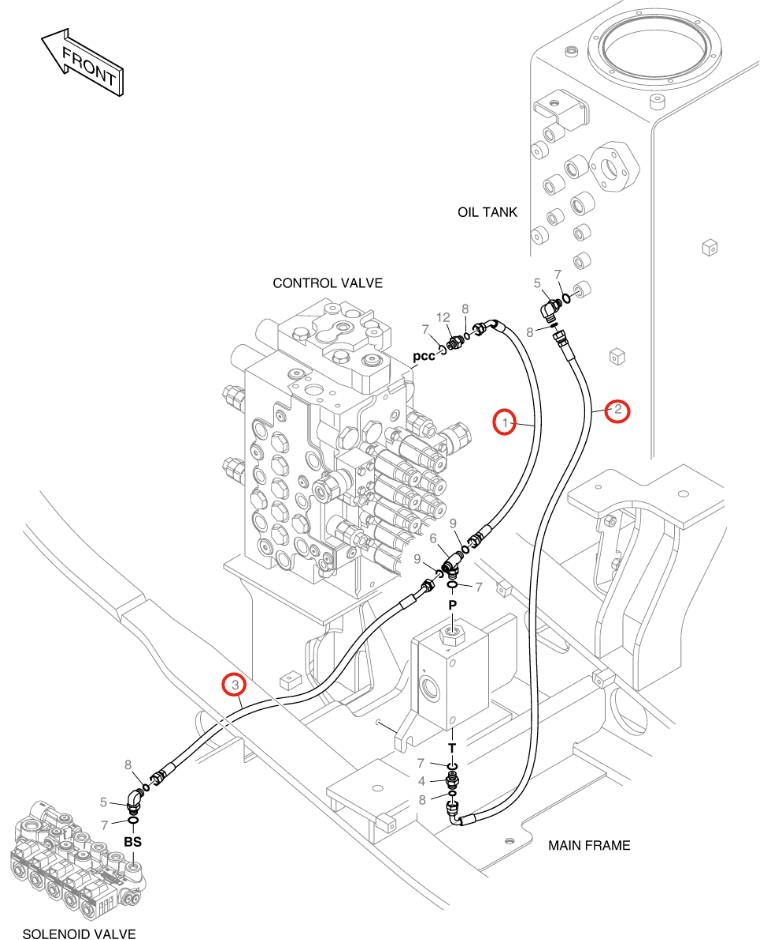

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number DS2121008 before removing the hose.
Repair specifications
- Part number
- DS2121008
- Diagram pipe number
- 2
- Installation route
- 液压油箱~截止阀(分配阀后下)T口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 720 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
