Individual hose record

4453166 Hose Repair Specifications

Excavator · Hitachi · EX17U · Attachments – Breaker

Finished length600 mm

Locate this hose

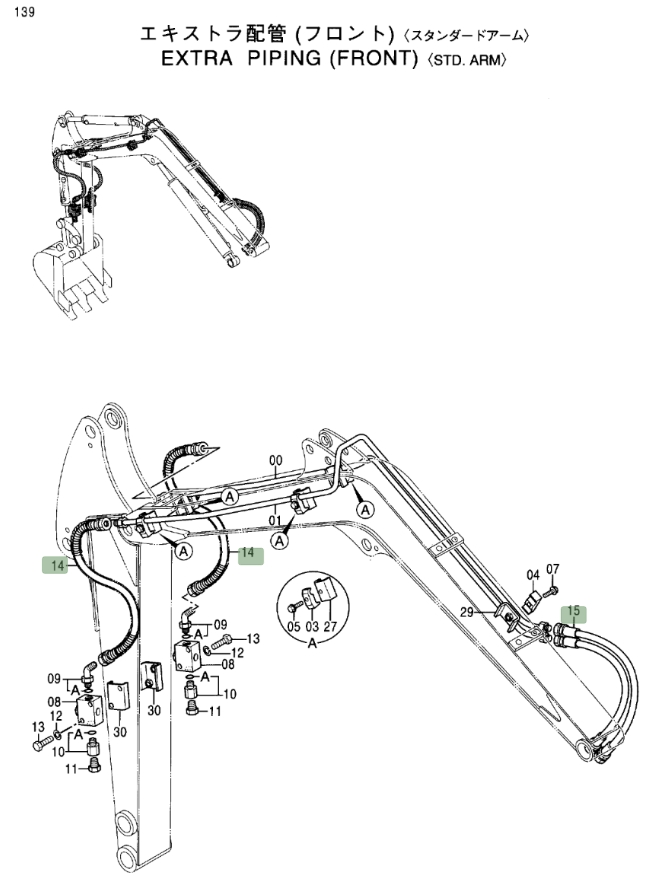

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4453166 before removing the hose.

Hitachi EX17U installation diagram showing hydraulic hose 4453166 at Pipe No. 15 — Hitachi EX17UPart 4453166 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4453166
Diagram pipe number: 15
Installation route: 大臂(破碎器)~接头(破碎器)
Hose specification: DN10;2SN-6;20.5MPa
Finished length: 600 mm
Working pressure: 20.5 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 2
