Individual hose record
4196297 Hose Repair Specifications
Excavator · Hitachi · EX150 · Boom Assembly
Finished length1,300 mm
Locate this hose

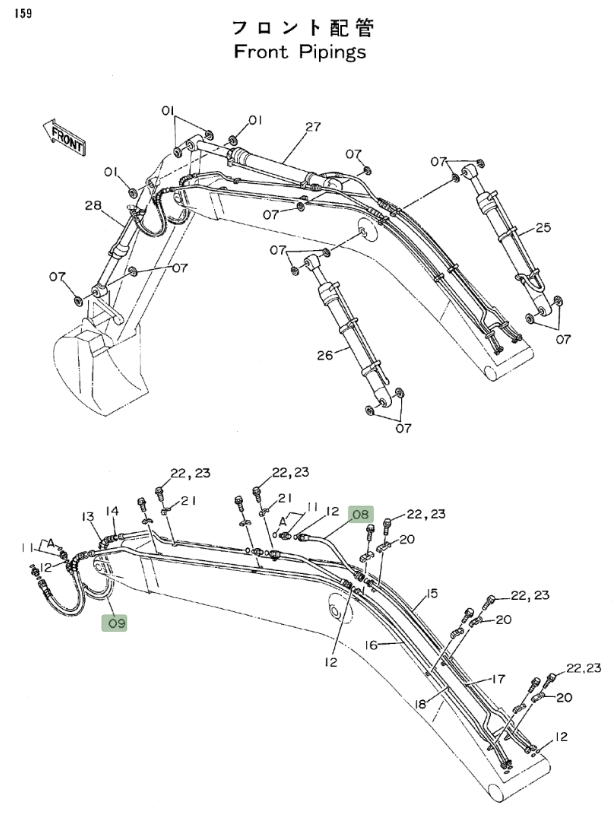

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4196297 before removing the hose.
Repair specifications
- Part number
- 4196297
- Diagram pipe number
- 9
- Installation route
- Bucket cylinderOriginal Chinese: 铲斗油缸
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 1,300 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
