Individual hose record

4287527 Hose Repair Specifications

Excavator · Hitachi · EX550LC · Control Lever

Finished length1,550 mm

Locate this hose

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 4287527 before removing the hose.

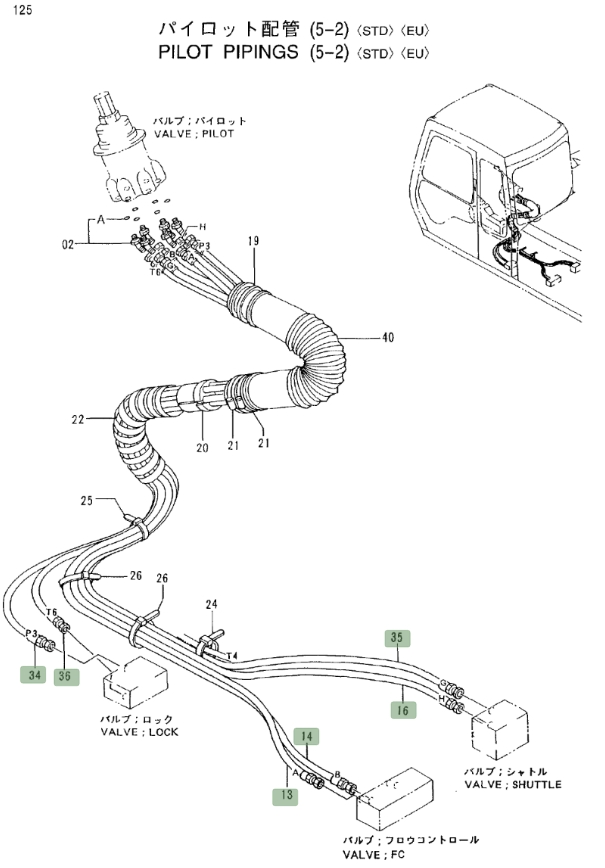

Hitachi EX550LC installation diagram showing hydraulic hose 4287527 at Pipe No. 34 — Hitachi EX550LCPart 4287527 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 4287527
Diagram pipe number: 34
Installation route: 右手柄~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,550 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

4367014

Installation route: 中转接头(手柄)~分配阀下右

Length: 2,400 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4366752

Installation route: 中转接头(手柄)~过渡阀块(手柄)

Length: 300 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 34

4304409

Installation route: 右手柄~进回油阀

Length: 1,600 mm
Specification: DN10;1SN-06;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 9

4315873

Installation route: 左手柄~过渡阀块(手柄)

Length: 1,950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4259316

Installation route: 中转接头(手柄)~过渡阀块(手柄)

Length: 300 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 32

4304411

Installation route: 左手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4299085

Installation route: 左手柄~进回油阀

Length: 1,250 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 24

4343398

Installation route: 中转接头(行走踏板)~回油铁管(液压油箱)

Length: 1,000 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
