Individual hose record
4343398 Hose Repair Specifications
Excavator · Hitachi · EX550LC · Control Lever
Finished length1,000 mm
Locate this hose

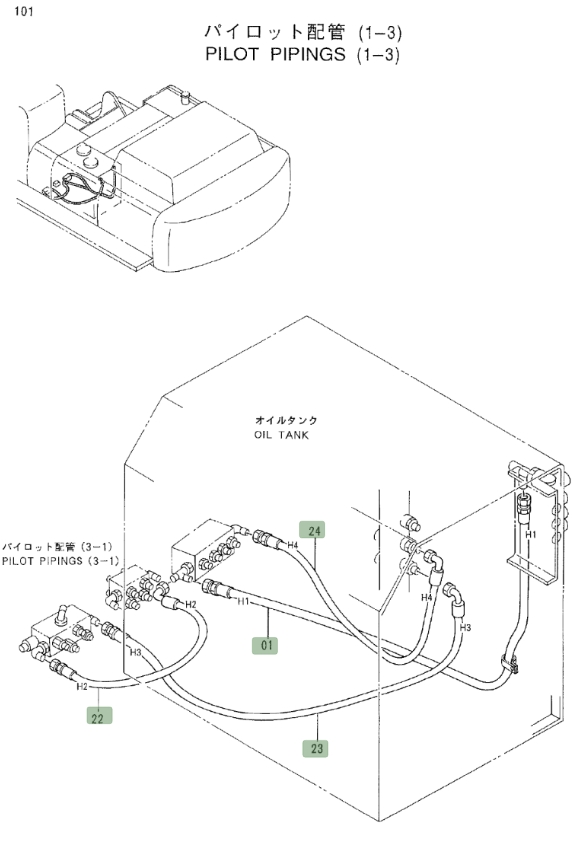

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4343398 before removing the hose.
Repair specifications
- Part number
- 4343398
- Diagram pipe number
- 24
- Installation route
- 中转接头(行走踏板)~回油铁管(液压油箱)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,000 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
