- Length
- 890 mm
- Specification
- DN19;4SP-12;34.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
4463611 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Boom Assembly
Finished length770 mm
Locate this hose

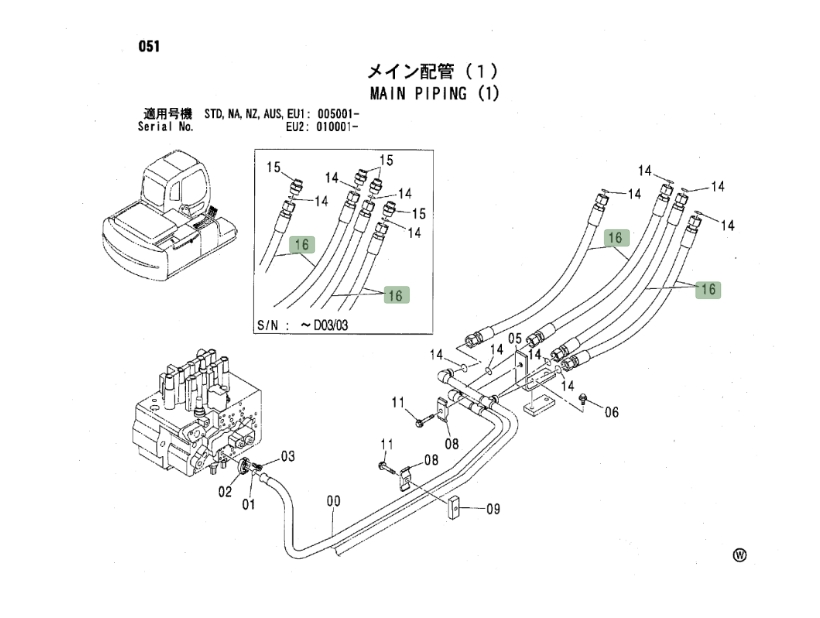

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4463611 before removing the hose.
Repair specifications
- Part number
- 4463611
- Diagram pipe number
- 16
- Installation route
- 大臂油缸
- Hose specification
- DN16;4SP-10;34.5Mpa
- Finished length
- 770 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 4
