Individual hose record

4451847 Hose Repair Specifications

Excavator · Hitachi · EX17U · Hydraulic Pump

Finished length350 mm

Locate this hose

Installation diagram — Pipe No. 42

Locate Pipe No. 42 in the diagram, then confirm part number 4451847 before removing the hose.

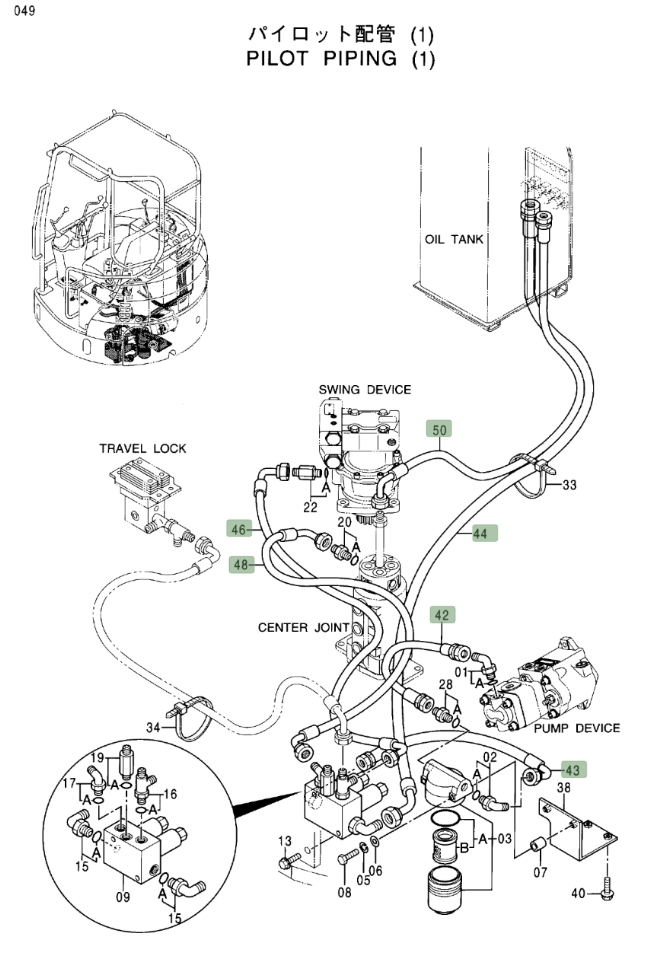

Hitachi EX17U installation diagram showing hydraulic hose 4451847 at Pipe No. 42 — Hitachi EX17UPart 4451847 · Pipe No. 42Open full-size diagram

Repair specifications

Part number: 4451847
Diagram pipe number: 42
Installation route: 液压泵~先导滤芯
Hose specification: DN10;1SN-6;7Mpa
Finished length: 350 mm
Working pressure: 7 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 1
