Individual hose record

730502002595 Hose Repair Specifications

Excavator · Sunward · SWE60F-1 · Attachments

Finished length580 mm

Locate this hose

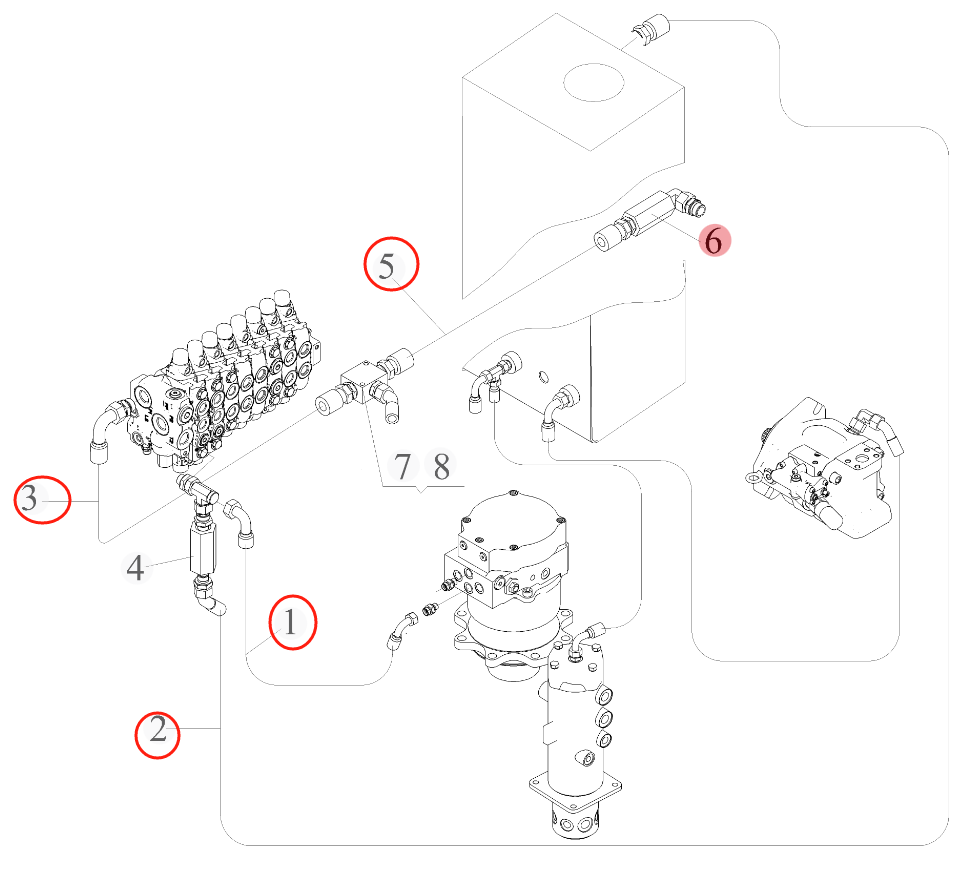

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 730502002595 before removing the hose.

Sunward SWE60F-1 installation diagram showing hydraulic hose 730502002595 at Pipe No. 5 — Sunward SWE60F-1Part 730502002595 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 730502002595
Diagram pipe number: 5
Installation route: 过渡阀块(液压油箱旁)~背压阀KLV-08-1.5
Hose specification: DN20;1SN-12;12MPa
Finished length: 580 mm
Working pressure: 12 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
