Individual hose record

2184-1046D216 Hose Repair Specifications

Excavator · Doosan · DX140W · Attachments – Lock Valve

Finished length3,000 mm

Locate this hose

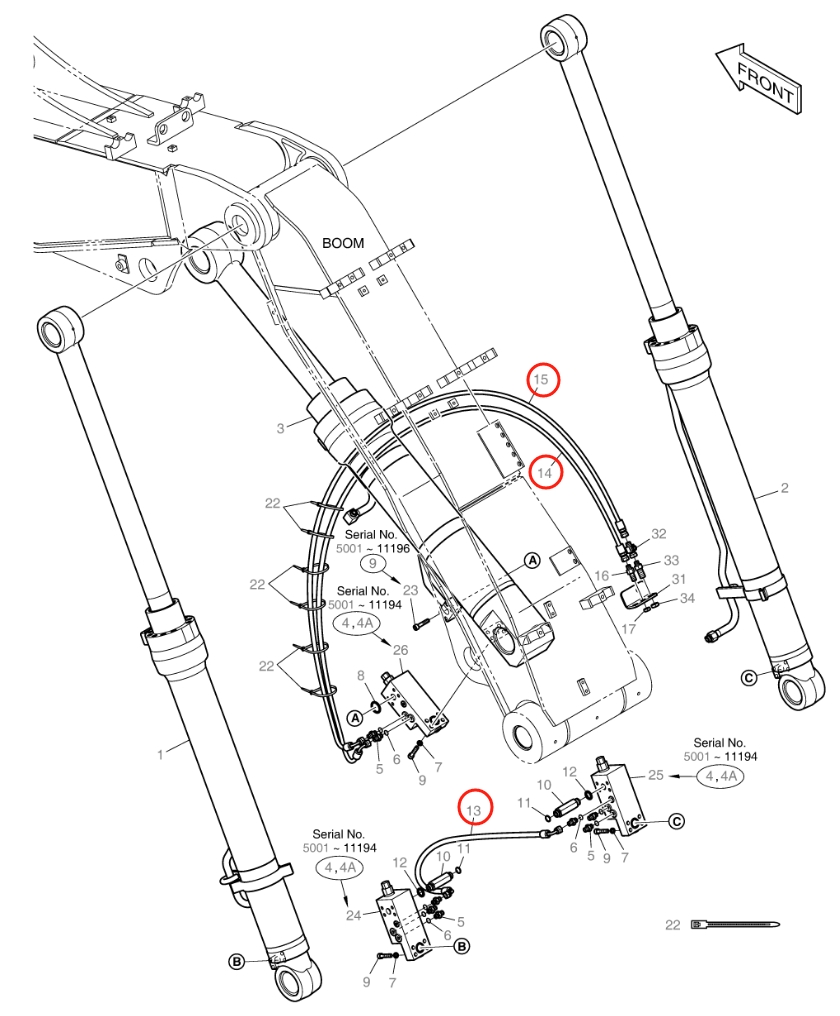

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 2184-1046D216 before removing the hose.

Part number: 2184-1046D216
Diagram pipe number: 14
Installation route: Two-piece boom cylinder lock valve → connector plate (two-piece boom cylinder lock valve)Original Chinese: 分节油缸锁止阀~接线板(分节油缸锁止阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 5

Installation route: Hydraulic tank → connector plate (under boom)Original Chinese: 液压油箱~接线板(大臂下)

Length: 410 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Hose record

Installation route: Hydraulic tank → connector plate (under boom)Original Chinese: 液压油箱~接线板(大臂下)

Length: 410 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
