Individual hose record
9323053 Hose Repair Specifications
Excavator · Hitachi · ZX130-5G · Control Valve
Finished length800 mm
Locate this hose

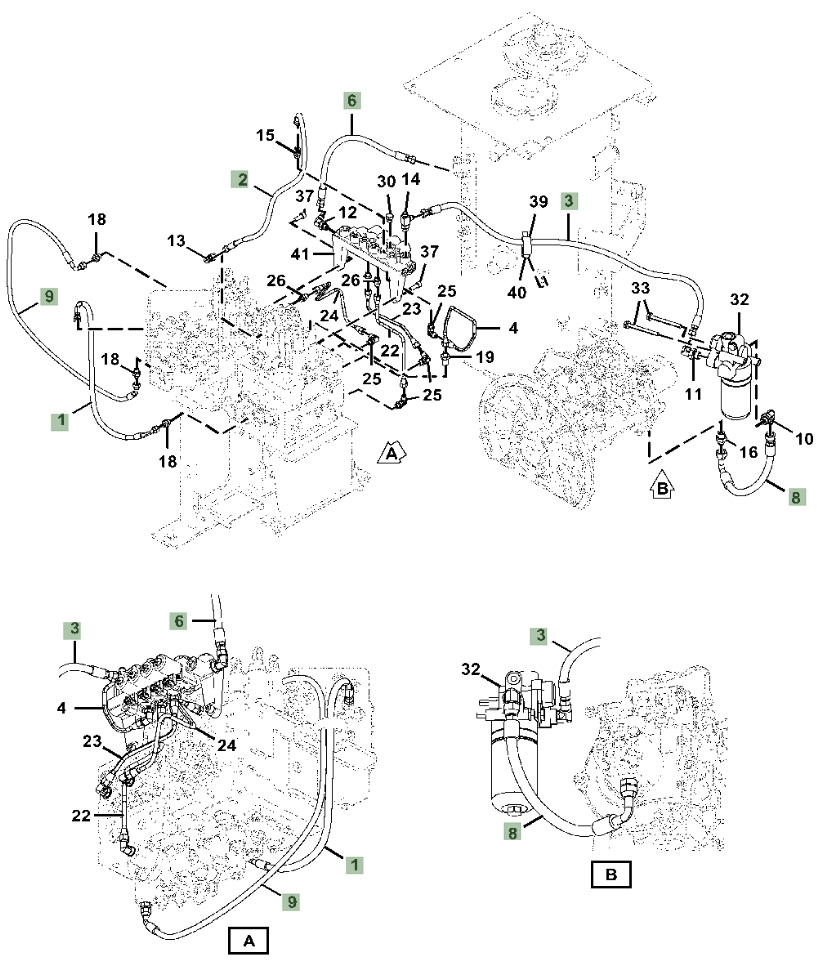

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 9323053 before removing the hose.
Repair specifications
- Part number
- 9323053
- Diagram pipe number
- 2
- Installation route
- 分配阀上~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 800 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
