Individual hose record

9150069 Hose Repair Specifications

Excavator · Hitachi · EX100M-5 · Hydraulic Pump

Finished length950 mm

Locate this hose

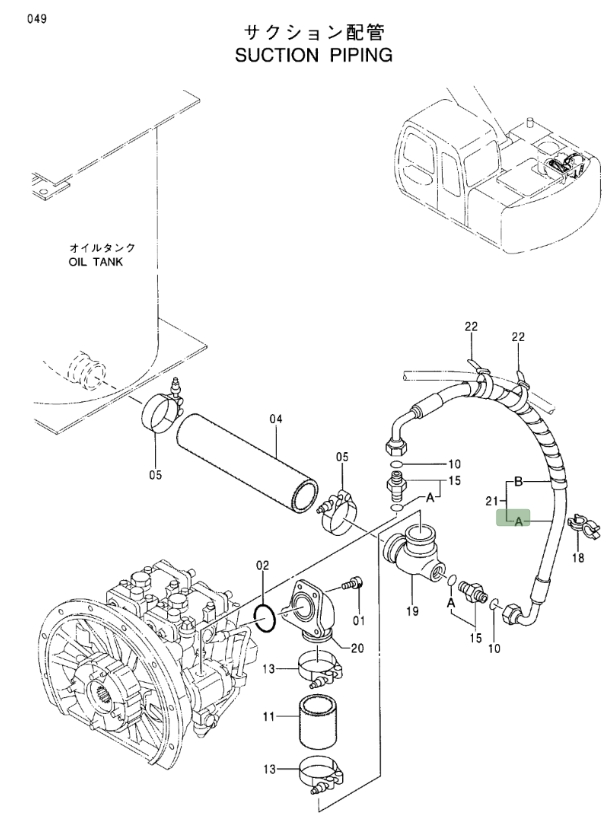

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 9150069 before removing the hose.

Hitachi EX100M-5 installation diagram showing hydraulic hose 9150069 at Pipe No. 21 — Hitachi EX100M-5Part 9150069 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 9150069
Diagram pipe number: 21
Installation route: 液压泵~吸油铁管
Hose specification: DN6;1SN-4;20.5MPa
Finished length: 950 mm
Working pressure: 20.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21A

4358996

Installation route: 液压泵~吸油铁管

Length: 950 mm
Specification: DN6;1SN-4;20.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 4

4366995

Installation route: 液压泵~液压油箱

Length: 1,200 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
