Individual hose record

4366995 Hose Repair Specifications

Excavator · Hitachi · EX100M-5 · Hydraulic Pump

Finished length1,200 mm

Locate this hose

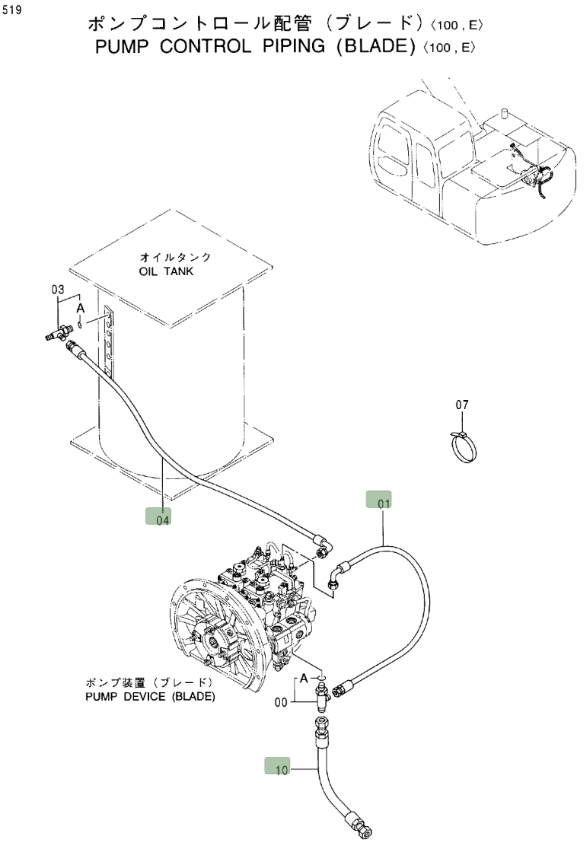

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 4366995 before removing the hose.

Hitachi EX100M-5 installation diagram showing hydraulic hose 4366995 at Pipe No. 4 — Hitachi EX100M-5Part 4366995 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 4366995
Diagram pipe number: 4
Installation route: 液压泵~液压油箱
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,200 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21A

4358996

Installation route: 液压泵~吸油铁管

Length: 950 mm
Specification: DN6;1SN-4;20.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 21

9150069

Installation route: 液压泵~吸油铁管

Length: 950 mm
Specification: DN6;1SN-4;20.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
