KHJ2088 Hose Repair Specifications

Excavator · Case · CX370D LC · Attachments – Breaker

Finished length900 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KHJ2088 before removing the hose.

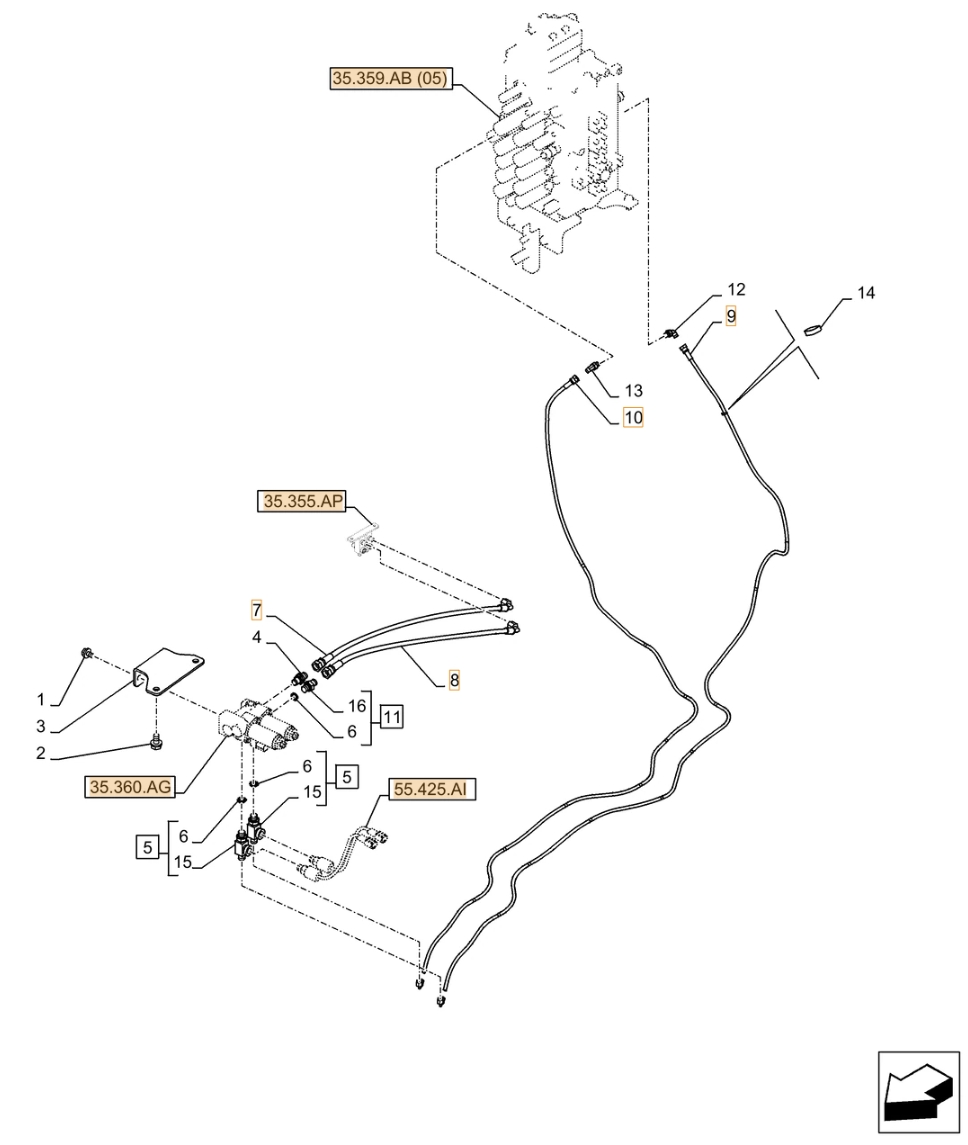

Case CX370D LC installation diagram showing hydraulic hose KHJ2088 at Pipe No. 8 — **Case CX370D LC**Part KHJ2088 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: KHJ2088
Diagram pipe number: 8
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 900 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
