Individual hose record

4618606 Hose Repair Specifications

Excavator · Hitachi · ZX160LC-3 · Attachments

Finished length520 mm

Locate this hose

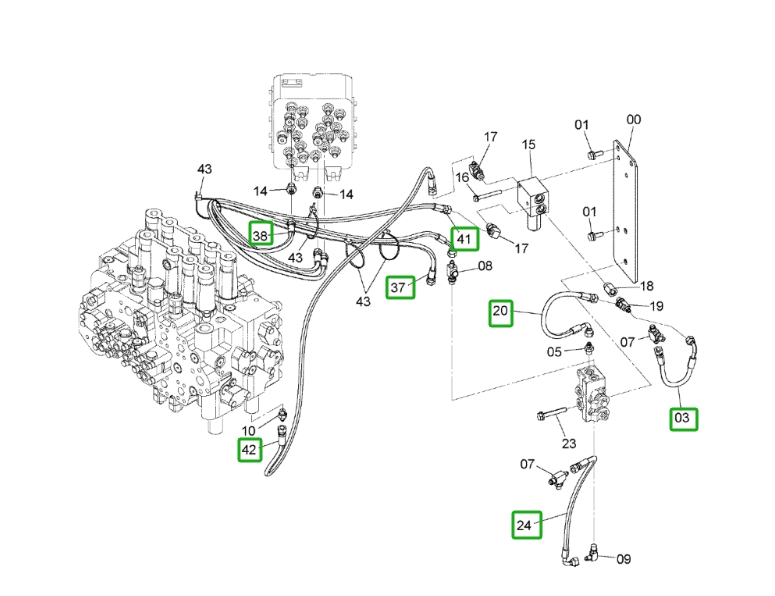

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 4618606 before removing the hose.

Hitachi ZX160LC-3 installation diagram showing hydraulic hose 4618606 at Pipe No. 24 — Hitachi ZX160LC-3Part 4618606 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 4618606
Diagram pipe number: 24
Installation route: 流速切换阀~
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 520 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 56A

4451995

Installation route: 控制阀(辅助)~过渡阀块(控制阀(辅助))

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 26

4470392

Installation route: 过渡阀块(分节大臂踏板)~过渡阀块(隔板)

Length: 550 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 20

4452734

Installation route: 流速切换阀~电磁阀(流速切换)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 16

4644618

Installation route: 液压泵~吸油铁管

Length: 480 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

4664393

Installation route: 电磁阀~过渡阀块(分节大臂)

Length: 650 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 4

4480078

Installation route: 蓄能器~过渡阀块(蓄能器)

Length: 300 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 36

4448832

Installation route: 流速切换阀~

Length: 700 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
