Individual hose record

4448832 Hose Repair Specifications

Excavator · Hitachi · ZX160LC-3 · Attachments

Finished length700 mm

Locate this hose

Installation diagram — Pipe No. 36

Locate Pipe No. 36 in the diagram, then confirm part number 4448832 before removing the hose.

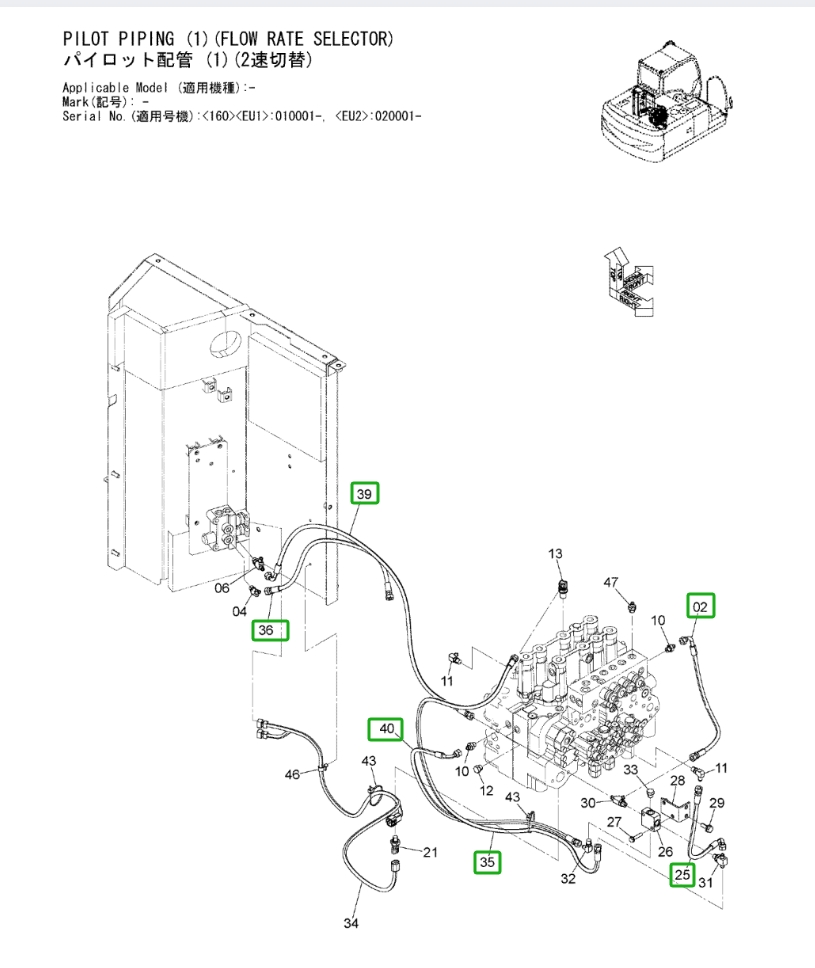

Hitachi ZX160LC-3 installation diagram showing hydraulic hose 4448832 at Pipe No. 36 — Hitachi ZX160LC-3Part 4448832 · Pipe No. 36Open full-size diagram

Repair specifications

Part number: 4448832
Diagram pipe number: 36
Installation route: 流速切换阀~
Hose specification: DN6;1SN-4;7Mpa
Finished length: 700 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
