Individual hose record

KHJ13660 Hose Repair Specifications

Excavator · Case · CX300B · Pedal

Finished length3,300 mm

Locate this hose

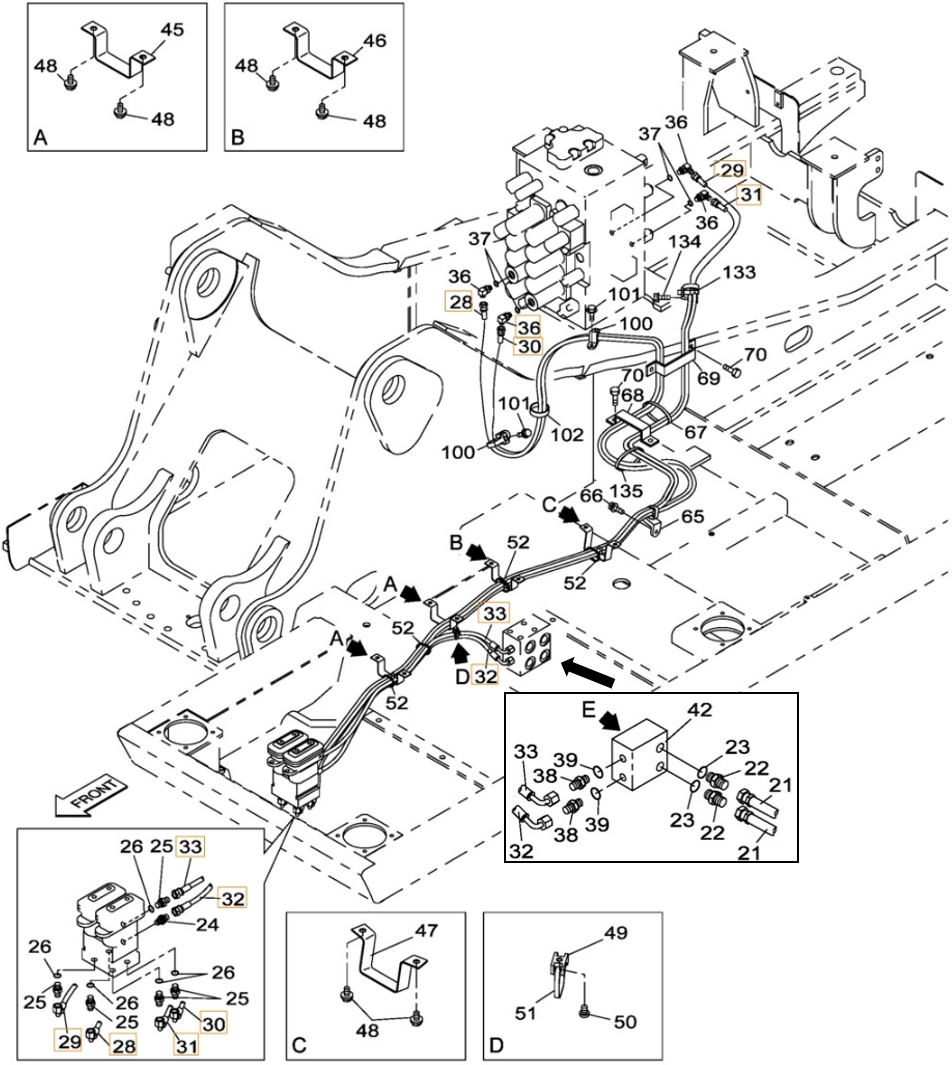

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number KHJ13660 before removing the hose.

Part number: KHJ13660
Diagram pipe number: 31
Installation route: 行走踏板~分配阀前左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 32

Installation route: 行走踏板~进回油阀

Length: 950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 30

Installation route: 行走踏板~分配阀后左

Length: 3,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 28

Installation route: 行走踏板~分配阀后右

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
