Individual hose record

4609296 Hose Repair Specifications

Excavator · Hitachi · ZX230W-5N · Attachments

Finished length800 mm

Locate this hose

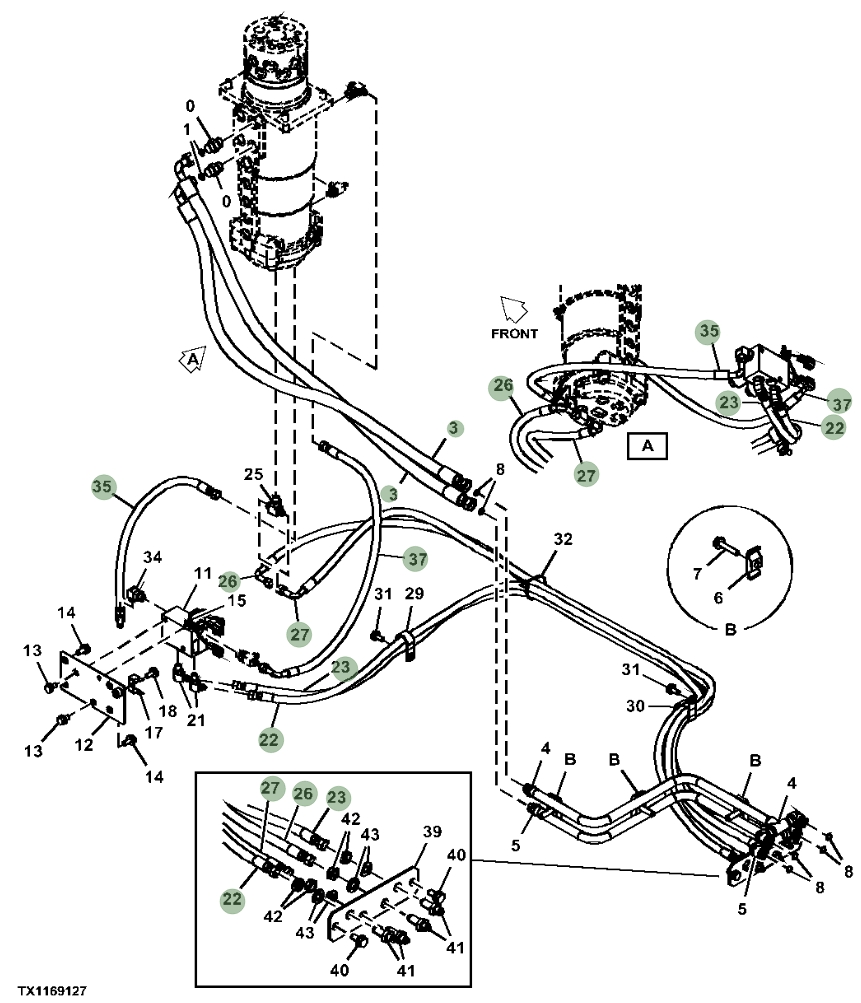

Installation diagram — Pipe No. 37

Locate Pipe No. 37 in the diagram, then confirm part number 4609296 before removing the hose.

Hitachi ZX230W-5N installation diagram showing hydraulic hose 4609296 at Pipe No. 37 — Hitachi ZX230W-5NPart 4609296 · Pipe No. 37Open full-size diagram

Repair specifications

Part number: 4609296
Diagram pipe number: 37
Installation route: 回转接头~电磁阀
Hose specification: DN10;1SN-6;18MPa
Finished length: 800 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 22

4663309

Installation route: 电磁阀(推土铲)~接线板(推土铲)

Length: 2,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 68

4436269

Installation route: 回转接头~电磁阀(支腿架)

Length: 350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 23

4663313

Installation route: 电磁阀(推土铲)~接线板(推土铲)

Length: 2,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 27

4659943

Installation route: 轮上作动筒~铁管(轮上作动筒)

Length: 760 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
