Individual hose record
4436269 Hose Repair Specifications
Excavator · Hitachi · ZX230W-5N · Attachments
Finished length350 mm
Locate this hose

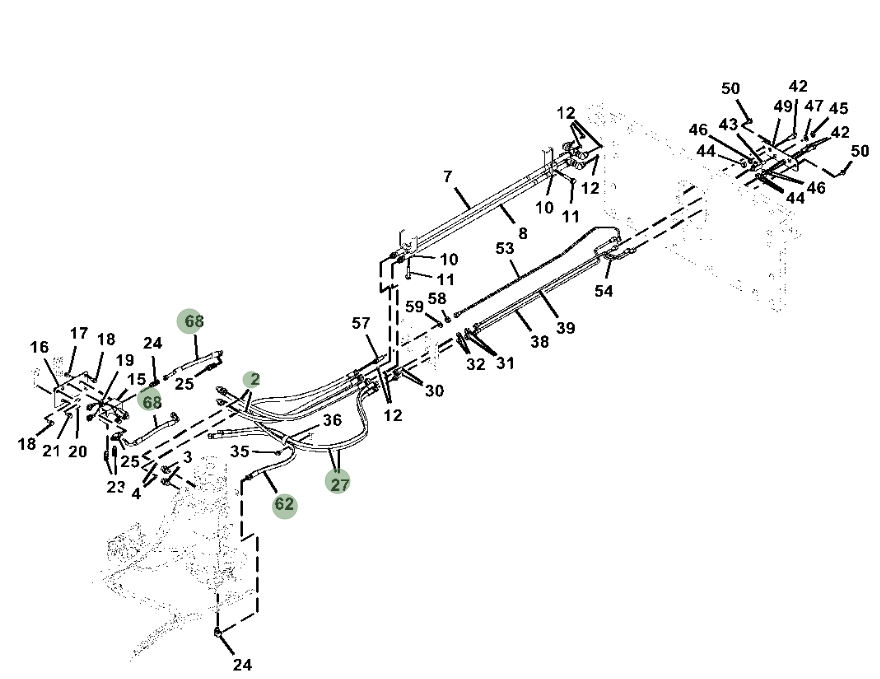

Installation diagram — Pipe No. 68
Locate Pipe No. 68 in the diagram, then confirm part number 4436269 before removing the hose.
Repair specifications
- Part number
- 4436269
- Diagram pipe number
- 68
- Installation route
- 回转接头~电磁阀(支腿架)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 350 mm
- Working pressure
- 18 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 2
