Individual hose record

730502000380 Hose Repair Specifications

Excavator · Sunward · SWE235E-3H · Attachments – Breaker

Finished length440 mm

Locate this hose

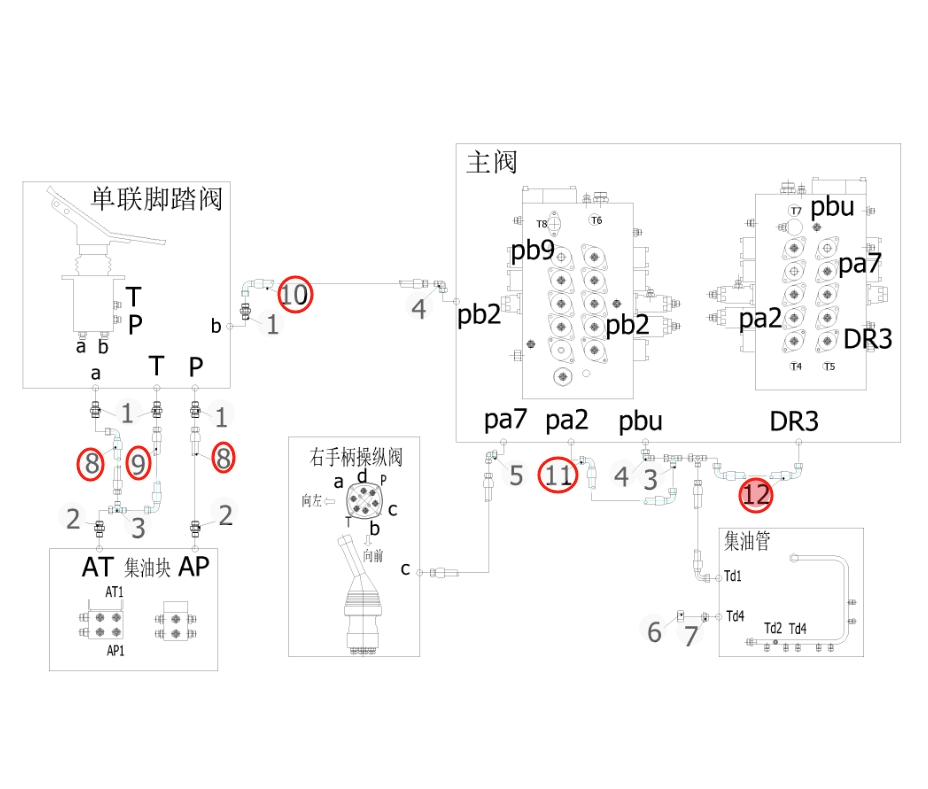

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 730502000380 before removing the hose.

Sunward SWE235E-3H installation diagram showing hydraulic hose 730502000380 at Pipe No. 8 — Sunward SWE235E-3HPart 730502000380 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 730502000380
Diagram pipe number: 8
Installation route: 破碎器踏板A~进回油阀AT
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 440 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

730502007630

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,550 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型

View full repair specifications

Diagram Pipe No. 8

730502000380

Installation route: 破碎器踏板P~进回油阀AP

Length: 440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

730502007630

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,550 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型

View full repair specifications

Diagram Pipe No. 10

730502000390

Installation route: 破碎器踏板B~分配阀PB2

Length: 2,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
