Individual hose record
151892A1 Hose Repair Specifications
Excavator · Case · CX210N · Control Valve
Finished length1,950 mm
Locate this hose

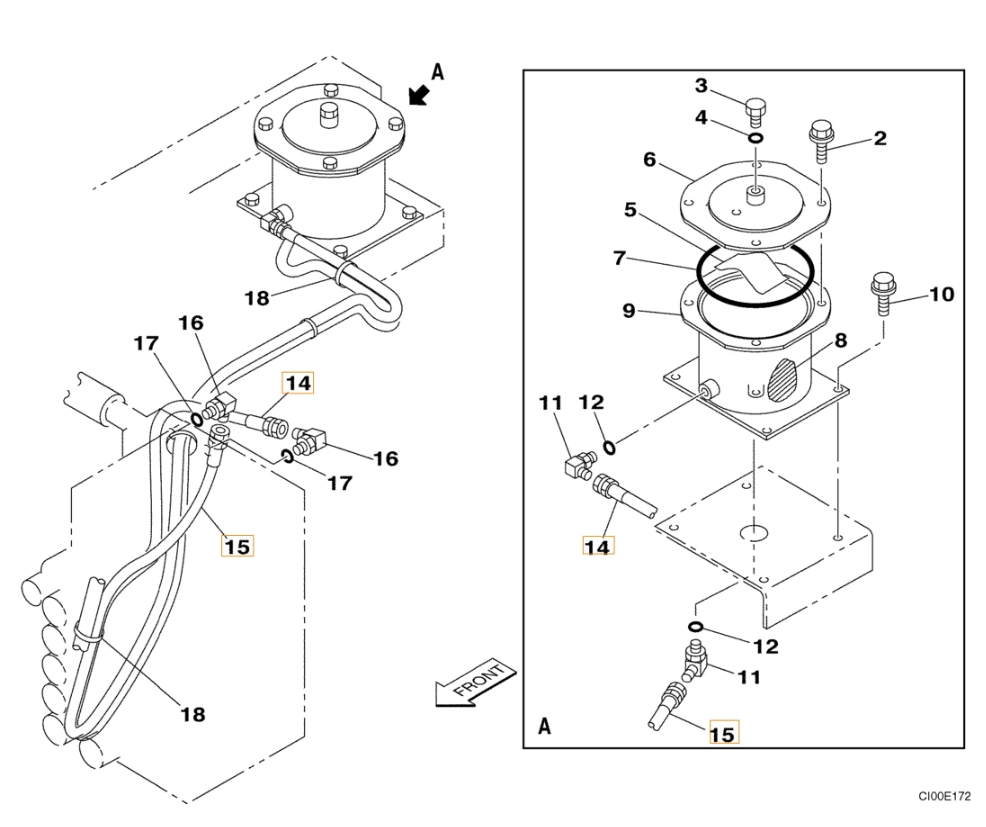

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 151892A1 before removing the hose.
Repair specifications
- Part number
- 151892A1
- Diagram pipe number
- 14
- Installation route
- 分配阀后~先导滤芯
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,950 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
