Individual hose record
730501001296 Hose Repair Specifications
Excavator · Sunward · SWE215F-5 · Swivel Joint
Finished length800 mm
Locate this hose

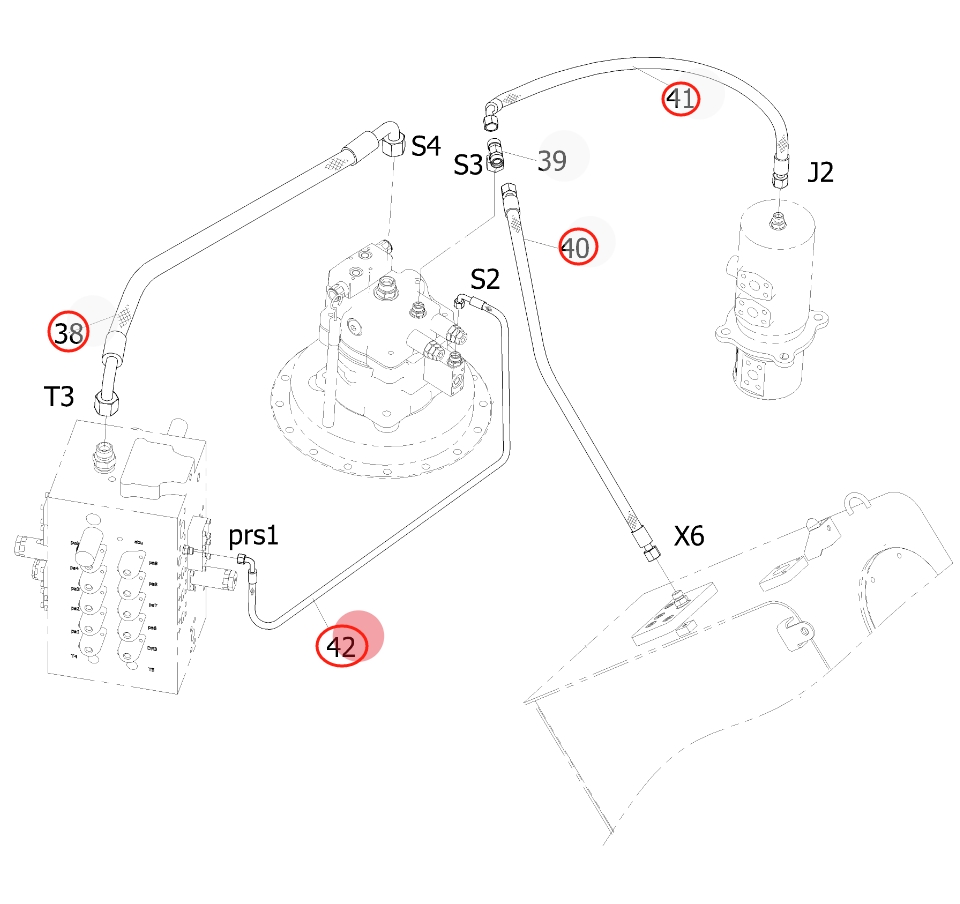

Installation diagram — Pipe No. 41
Locate Pipe No. 41 in the diagram, then confirm part number 730501001296 before removing the hose.
Repair specifications
- Part number
- 730501001296
- Diagram pipe number
- 41
- Installation route
- 回转接头T2~回转马达上
- Hose specification
- DN16;1SN-10;13.8MPa
- Finished length
- 800 mm
- Working pressure
- 13.8 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
