Individual hose record

730503000610 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Swivel Joint

Finished length1,580 mm

Locate this hose

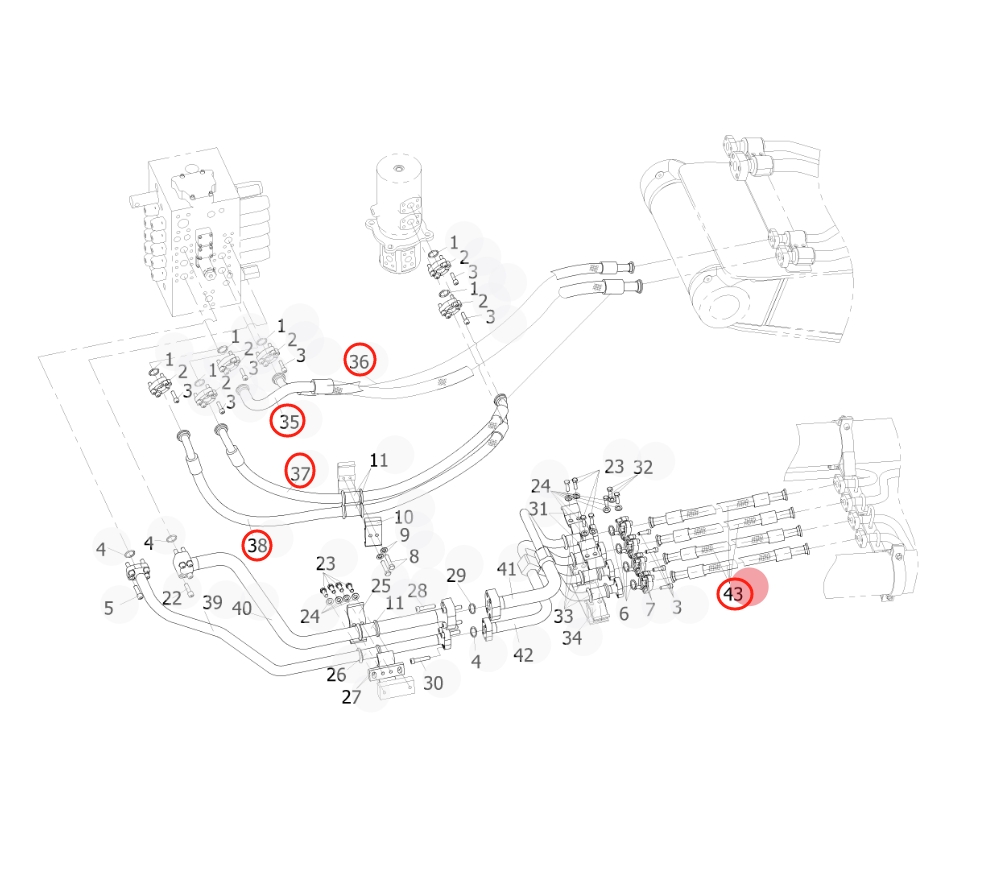

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 730503000610 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 730503000610 at Pipe No. 38 — Sunward SWE215F-5Part 730503000610 · Pipe No. 38Open full-size diagram

Repair specifications

Part number: 730503000610
Diagram pipe number: 38
Installation route: 回转接头~分配阀右
Hose specification: DN20;6SH-12;35MPa
Finished length: 1,580 mm
Working pressure: 35 MPa
Left fitting: 45°法兰-轻型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 41

730501001296

Installation route: 回转接头T2~回转马达上

Length: 800 mm
Specification: DN16;1SN-10;13.8MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
