Individual hose record
4368898 Hose Repair Specifications
Excavator · Hitachi · EX200LC-5 · Attachments
Finished length1,400 mm
Locate this hose

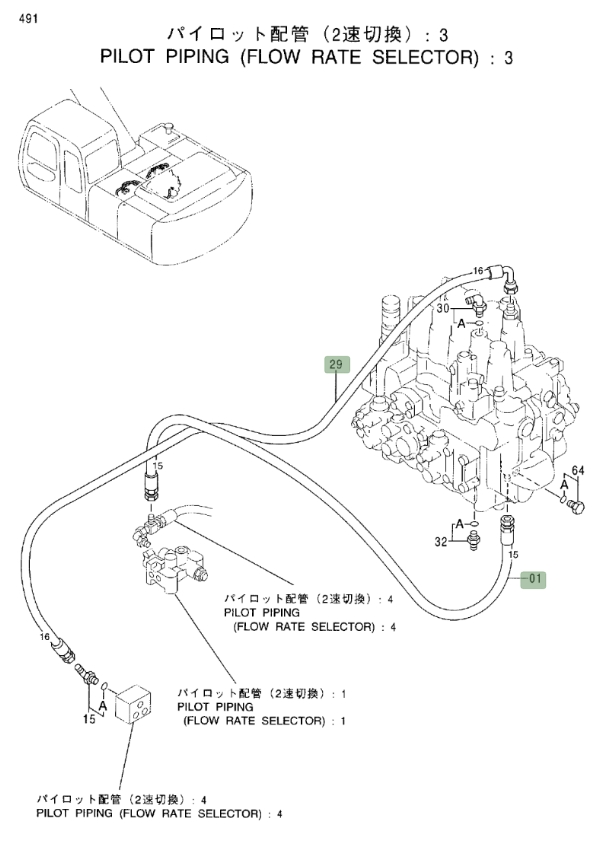

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4368898 before removing the hose.
Repair specifications
- Part number
- 4368898
- Diagram pipe number
- 1
- Installation route
- 分配阀下~流速切换阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,400 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
