Individual hose record

159228A1 Hose Repair Specifications

Excavator · Case · CX700 · Control Valve

Finished length1,750 mm

Locate this hose

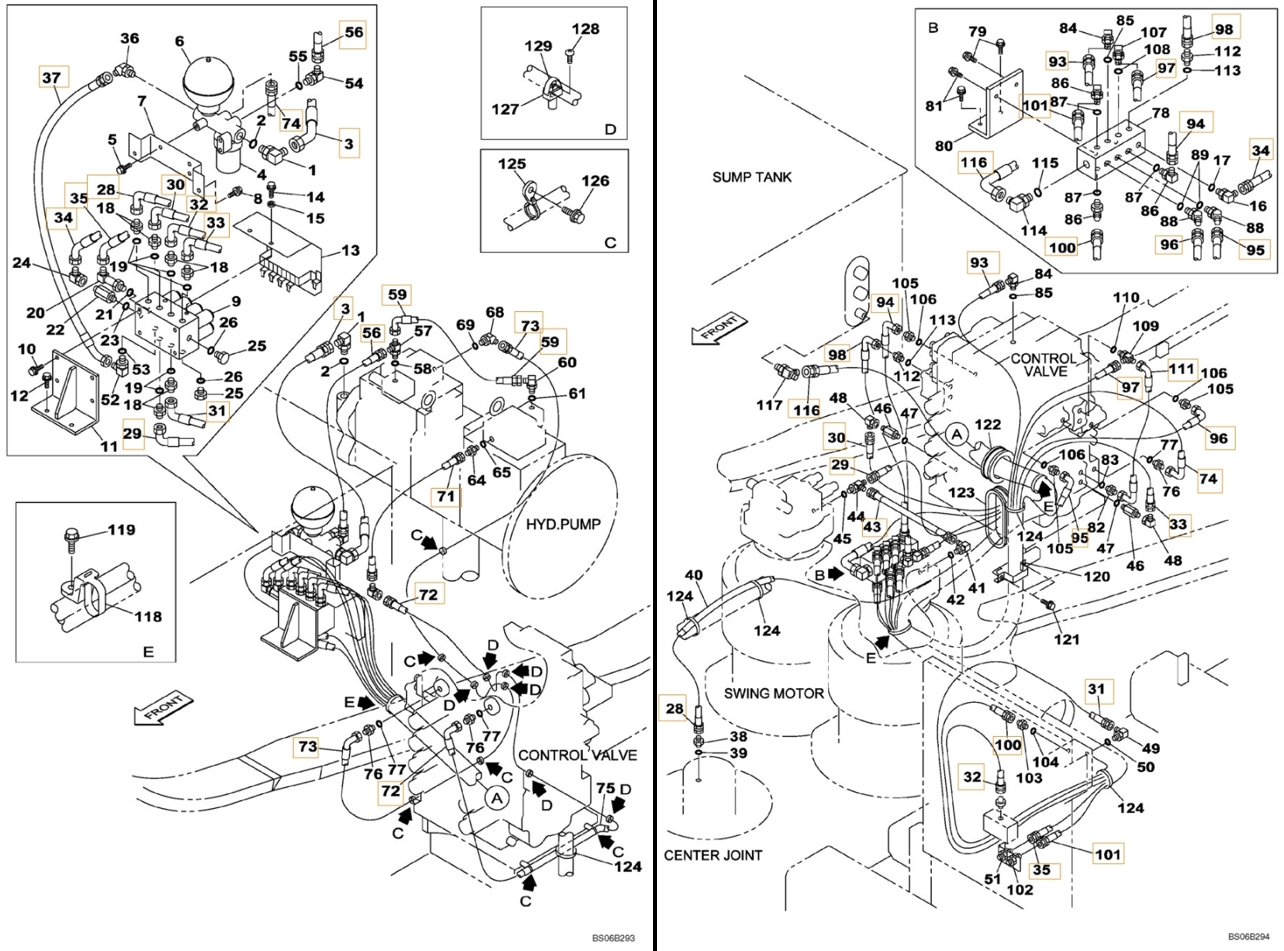

Installation diagram — Pipe No. 96

Locate Pipe No. 96 in the diagram, then confirm part number 159228A1 before removing the hose.

Part number: 159228A1
Diagram pipe number: 96
Installation route: 分配阀左~回转马达(左)过渡阀块
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,750 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 93

Installation route: 分配阀顶~回转马达(左)过渡阀块

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 95

Installation route: 分配阀左~回转马达(左)过渡阀块

Length: 1,700 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 97

Installation route: 分配阀左~回转马达(左)过渡阀块

Length: 2,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 17

Installation route: 回油铁管(分配阀)~旁通过滤器

Length: 3,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
