Individual hose record
4606844 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-5G · Hydraulic Tank
Finished length1,250 mm
Locate this hose

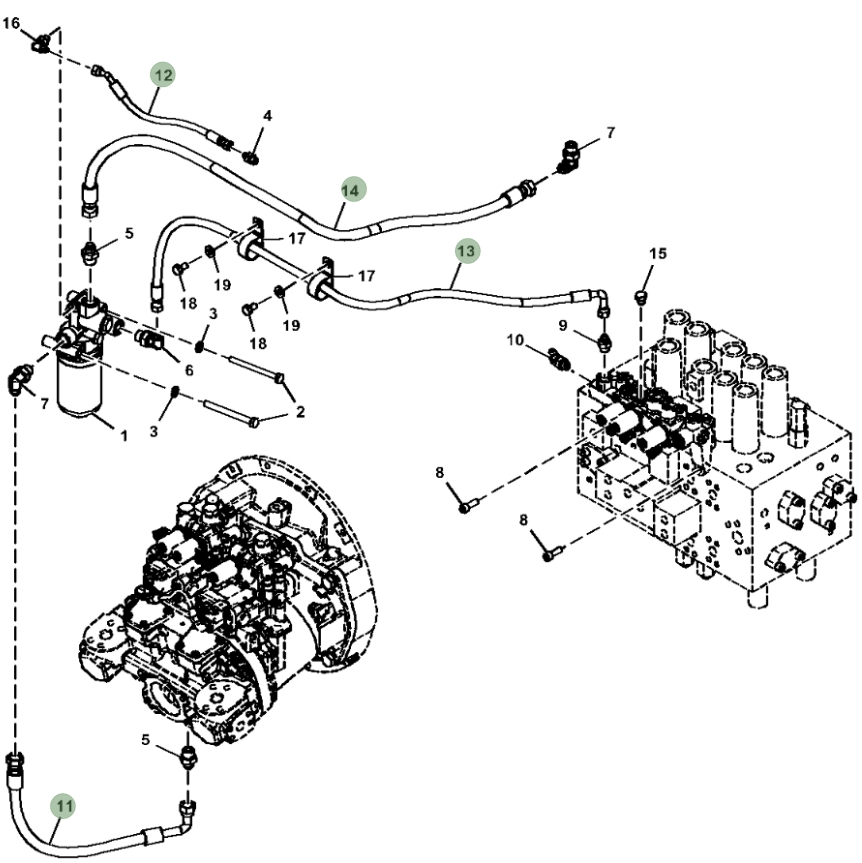

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4606844 before removing the hose.
Repair specifications
- Part number
- 4606844
- Diagram pipe number
- 14
- Installation route
- 回油铁管(液压油箱)~先导滤芯
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 1,250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
