Individual hose record
DS2093573 Hose Repair Specifications
Excavator · Doosan · B55W-2 · Attachments – Lock Valve
Finished length2,390 mm
Locate this hose

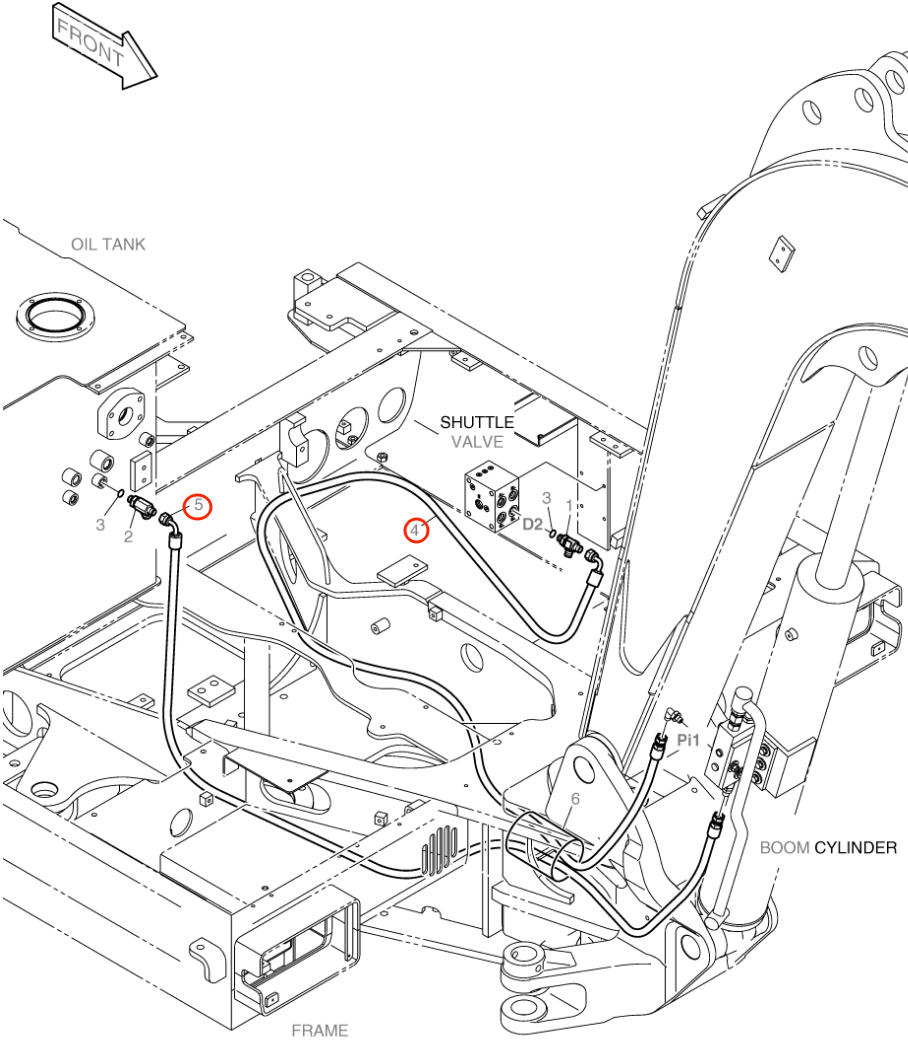

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number DS2093573 before removing the hose.
Repair specifications
- Part number
- DS2093573
- Diagram pipe number
- 5
- Installation route
- 大臂油缸锁止阀PI1口~梭阀(手柄)D2口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,390 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
