Individual hose record

73050200B196 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Hydraulic Pump

Finished length1,180 mm

Locate this hose

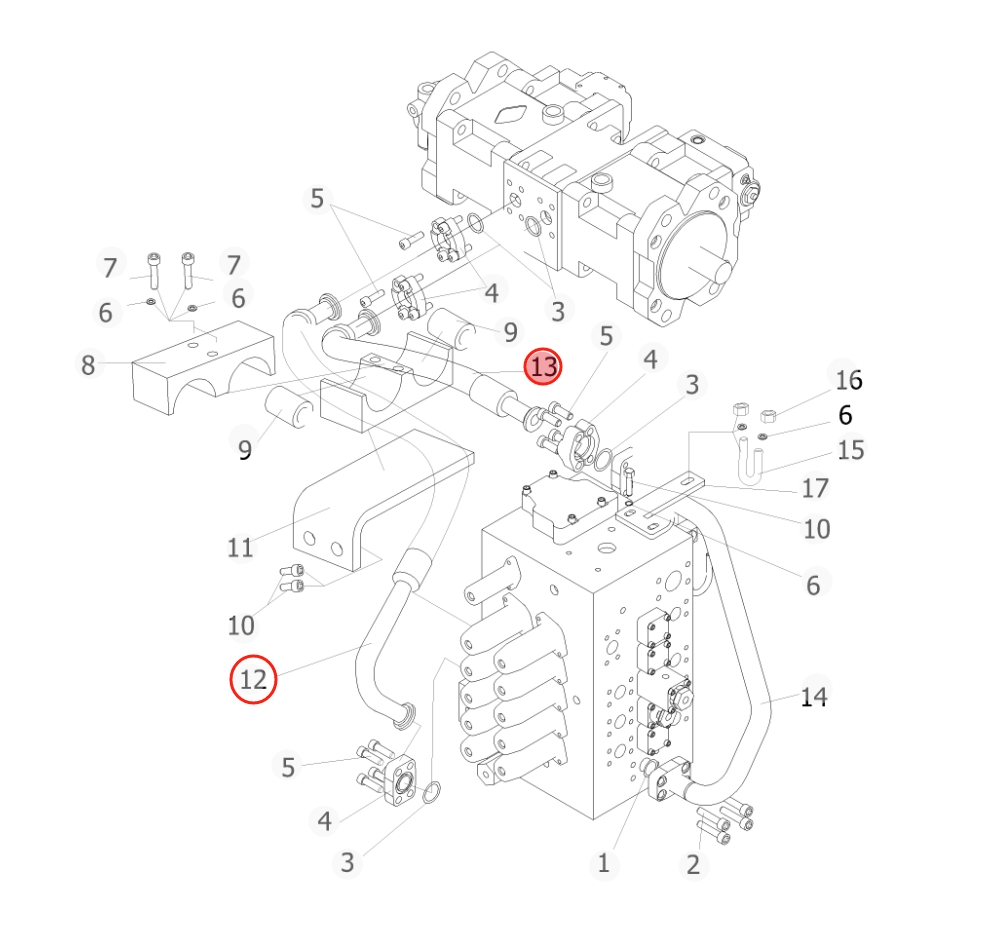

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 73050200B196 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 73050200B196 at Pipe No. 12 — Sunward SWE215F-5Part 73050200B196 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 73050200B196
Diagram pipe number: 12
Installation route: 液压泵~分配阀(进油)
Hose specification: DN25;6SH-16;35MPa
Finished length: 1,180 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 32

730502005275

Installation route: 液压泵上D6~液压油箱X7

Length: 680 mm
Specification: DN20;1SN-12;12MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 30

730502002465

Installation route: 液压泵上D1~分配阀PS1

Length: 3,050 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 13

73050200B197

Installation route: 液压泵~分配阀(进油)

Length: 1,100 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications
