Individual hose record

730502002465 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Hydraulic Pump

Finished length3,050 mm

Locate this hose

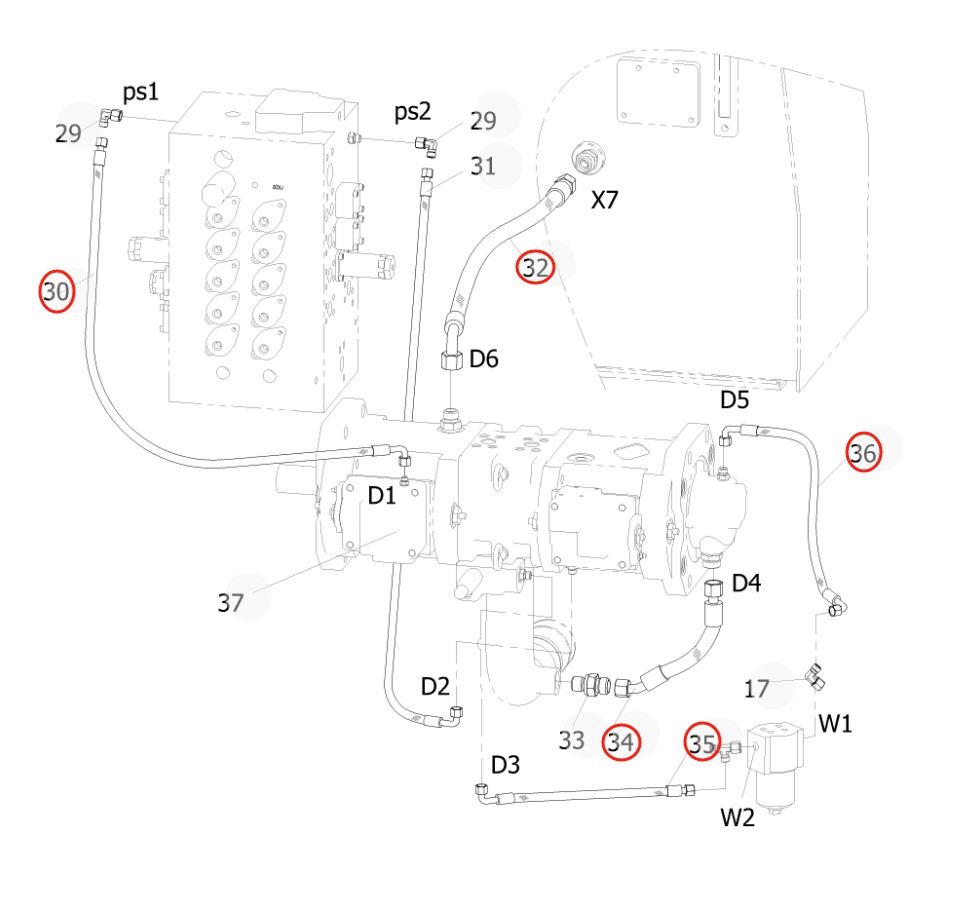

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 730502002465 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 730502002465 at Pipe No. 30 — Sunward SWE215F-5Part 730502002465 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 730502002465
Diagram pipe number: 30
Installation route: 液压泵上D1~分配阀PS1
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,050 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 12

73050200B196

Installation route: 液压泵~分配阀(进油)

Length: 1,180 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications

Diagram Pipe No. 32

730502005275

Installation route: 液压泵上D6~液压油箱X7

Length: 680 mm
Specification: DN20;1SN-12;12MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 13

73050200B197

Installation route: 液压泵~分配阀(进油)

Length: 1,100 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications
