Individual hose record

DS2092129 Hose Repair Specifications

Excavator · Doosan · DX80R · Swivel Joint

Finished length1,300 mm

Locate this hose

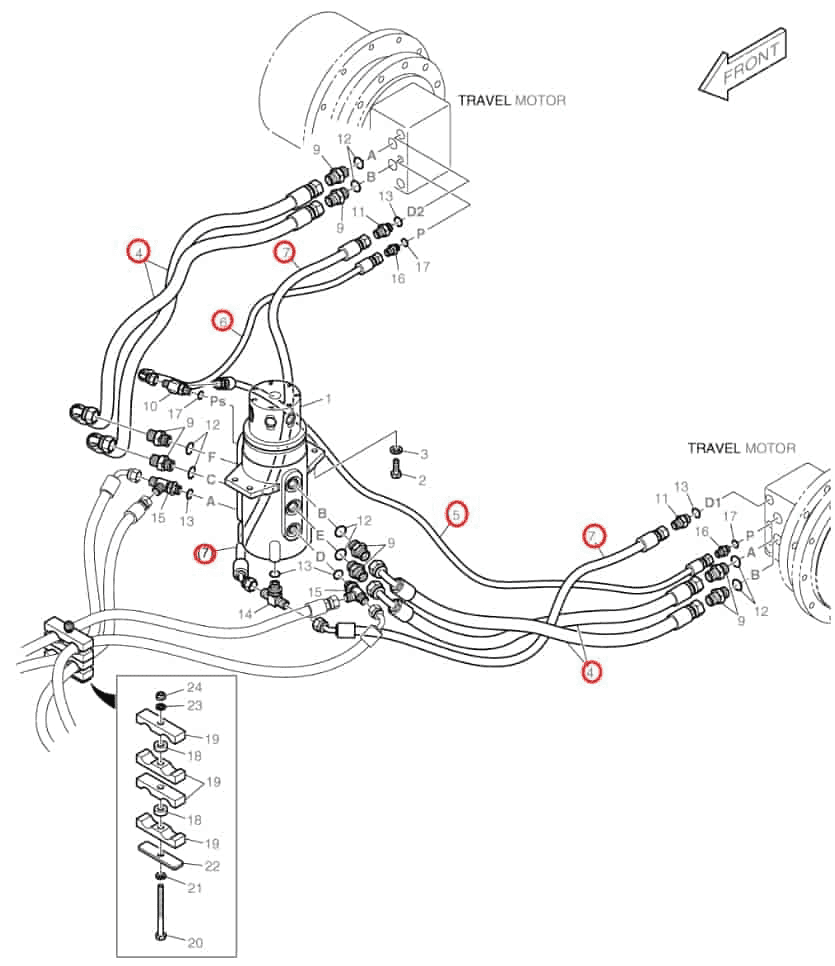

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number DS2092129 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose DS2092129 at Pipe No. 7 — **Doosan DX80R**Part DS2092129 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: DS2092129
Diagram pipe number: 7
Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,300 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 70

DS2090095

Installation route: 回转接头C口~分配阀B7口

Length: 990 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

DS2094044

Installation route: 回转接头PS口~电磁阀

Length: 1,440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 80

DS2093653

Installation route: 回转接头A口~分配阀B4口

Length: 950 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 76

DS2090097

Installation route: 回转接头B口~分配阀A6口

Length: 830 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 77

DS2090097

Installation route: 回转接头F口~分配阀A7口

Length: 830 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 81

DS2093654

Installation route: 回转接头D口~分配阀A4口

Length: 830 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 76

DS2090096

Installation route: 回转接头B口~分配阀A6口

Length: 800 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 6

DS2093658

Installation route: 回转接头PS口~行走马达P口

Length: 1,380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
