Individual hose record

DS2094044 Hose Repair Specifications

Excavator · Doosan · DX80R · Swivel Joint

Finished length1,440 mm

Locate this hose

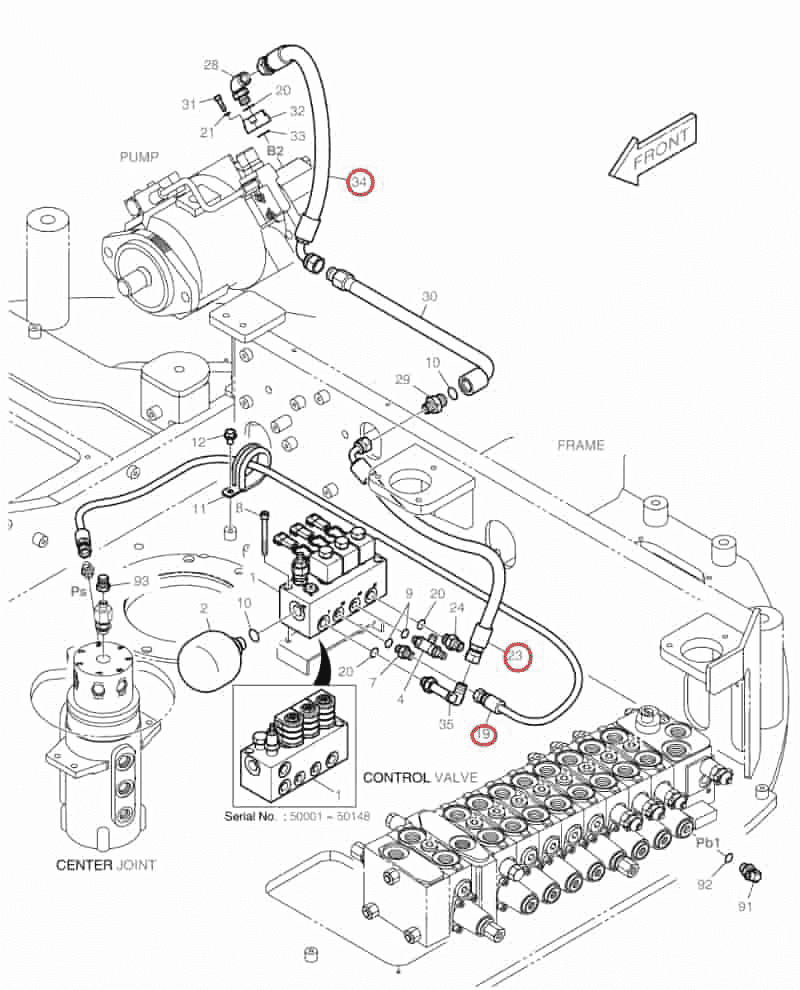

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number DS2094044 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose DS2094044 at Pipe No. 19 — **Doosan DX80R**Part DS2094044 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: DS2094044
Diagram pipe number: 19
Installation route: 回转接头PS口~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,440 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 70

DS2090095

Installation route: 回转接头C口~分配阀B7口

Length: 990 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

DS2092129

Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 80

DS2093653

Installation route: 回转接头A口~分配阀B4口

Length: 950 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 76

DS2090097

Installation route: 回转接头B口~分配阀A6口

Length: 830 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 77

DS2090097

Installation route: 回转接头F口~分配阀A7口

Length: 830 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 81

DS2093654

Installation route: 回转接头D口~分配阀A4口

Length: 830 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 76

DS2090096

Installation route: 回转接头B口~分配阀A6口

Length: 800 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 6

DS2093658

Installation route: 回转接头PS口~行走马达P口

Length: 1,380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
