Individual hose record

168411A1 Hose Repair Specifications

Excavator · Case · CX290 · Control Lever

Finished length650 mm

Locate this hose

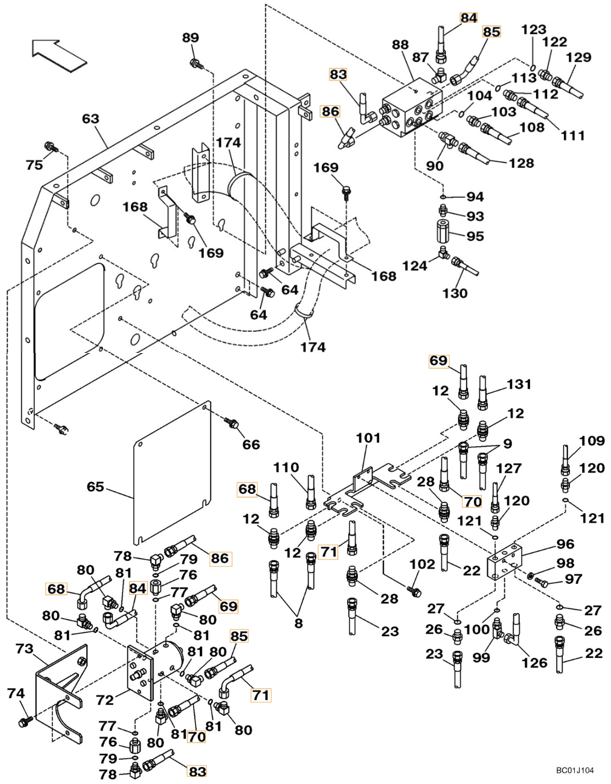

Installation diagram — Pipe No. 71

Locate Pipe No. 71 in the diagram, then confirm part number 168411A1 before removing the hose.

Case CX290 installation diagram showing hydraulic hose 168411A1 at Pipe No. 71 — **Case CX290**Part 168411A1 · Pipe No. 71Open full-size diagram

Repair specifications

Part number: 168411A1
Diagram pipe number: 71
Installation route: 中转接头~模式转换阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 650 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
