Individual hose record
KHJ2312 Hose Repair Specifications
Excavator · Case · CX300E NLC · Hydraulic Tank
Finished length2,500 mm
Locate this hose

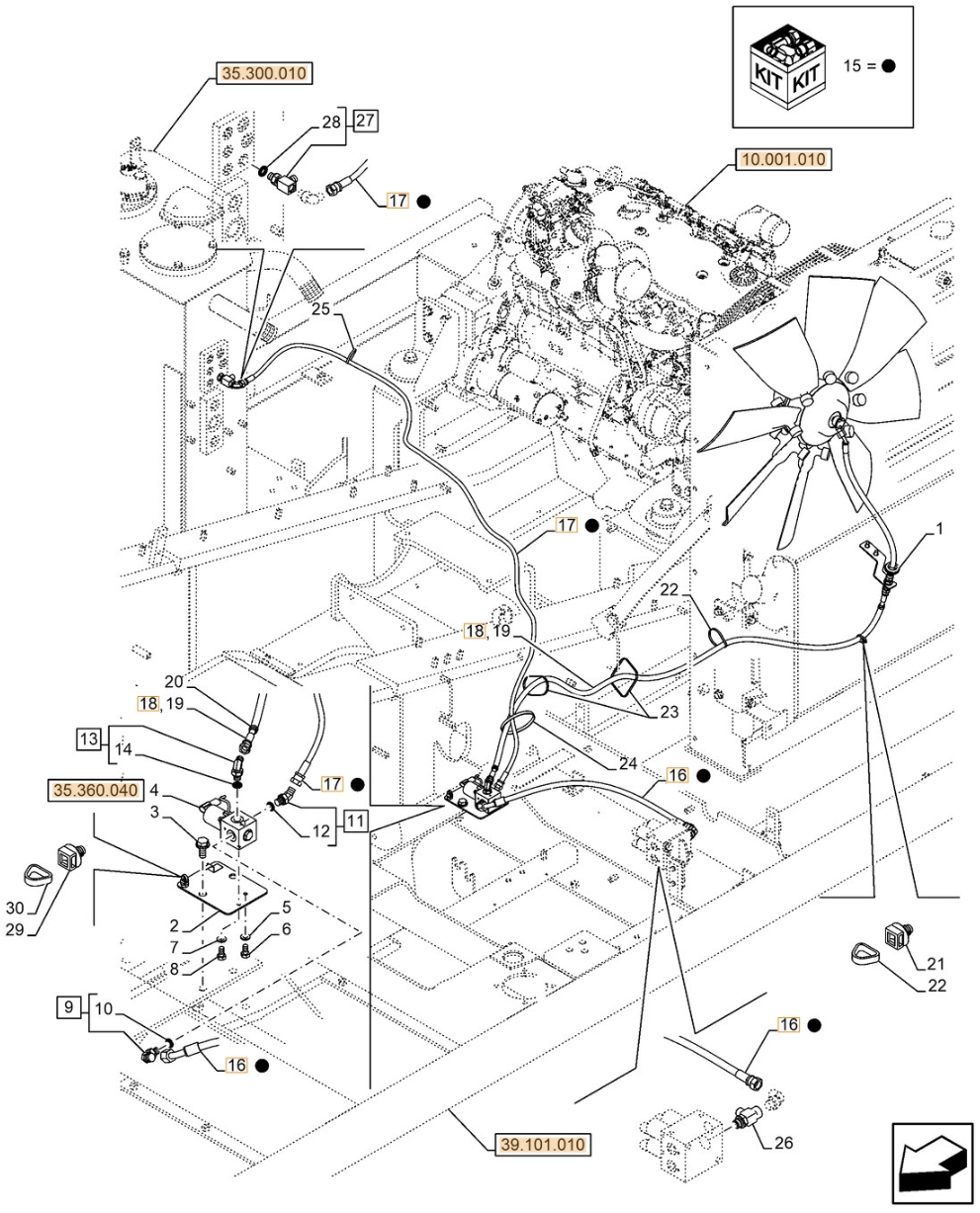

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number KHJ2312 before removing the hose.
Repair specifications
- Part number
- KHJ2312
- Diagram pipe number
- 17
- Installation route
- 液压油箱~电磁阀(散热器)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
