Individual hose record
KHJ2239 Hose Repair Specifications
Excavator · Case · CX300E NLC · Hydraulic Tank
Finished length520 mm
Locate this hose

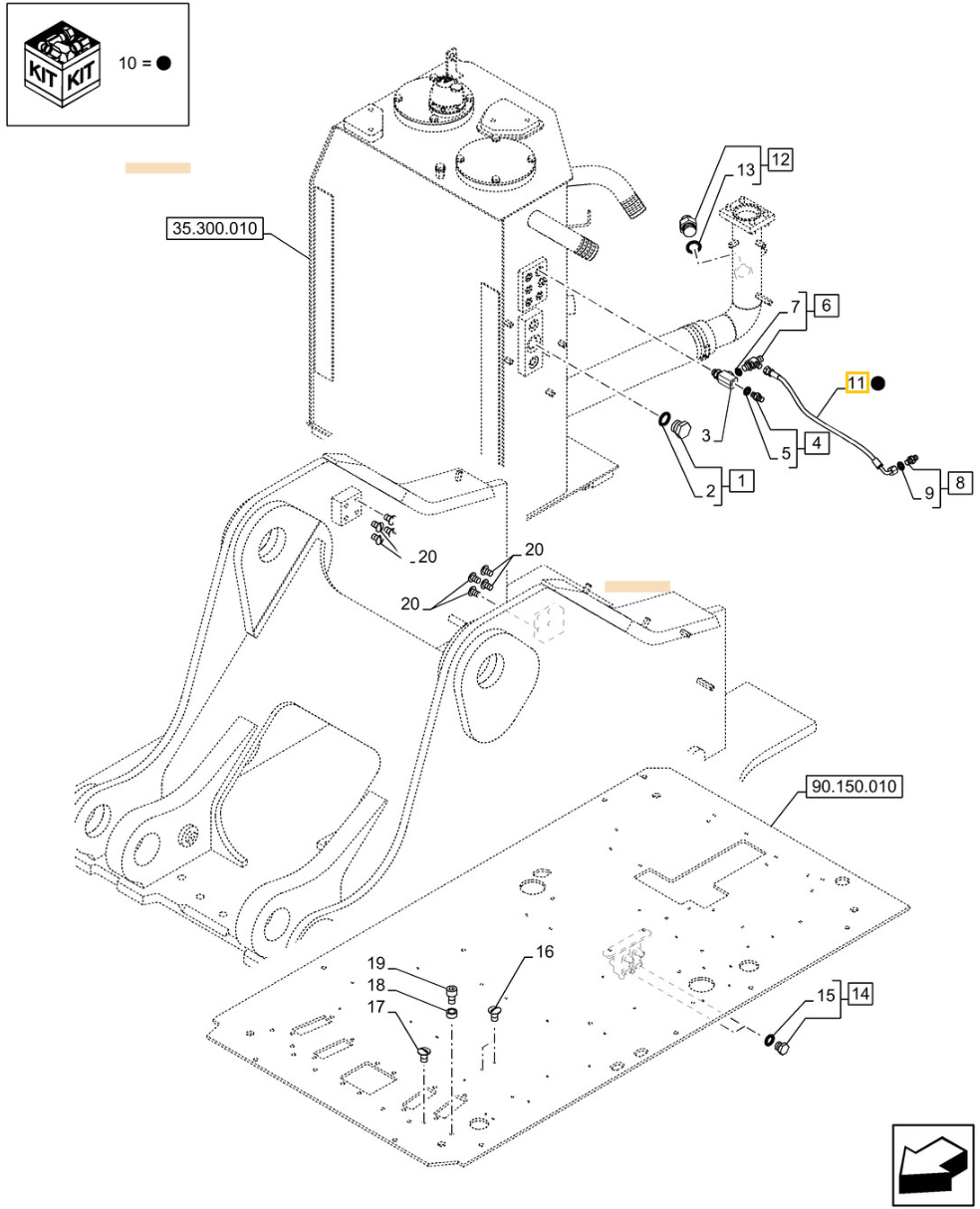

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number KHJ2239 before removing the hose.
Repair specifications
- Part number
- KHJ2239
- Diagram pipe number
- 11
- Installation route
- 液压油箱左~接头
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 520 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
