Individual hose record
4270447 Hose Repair Specifications
Excavator · Hitachi · ZX345USLC-6N · Hydraulic Tank
Finished length3,200 mm
Locate this hose

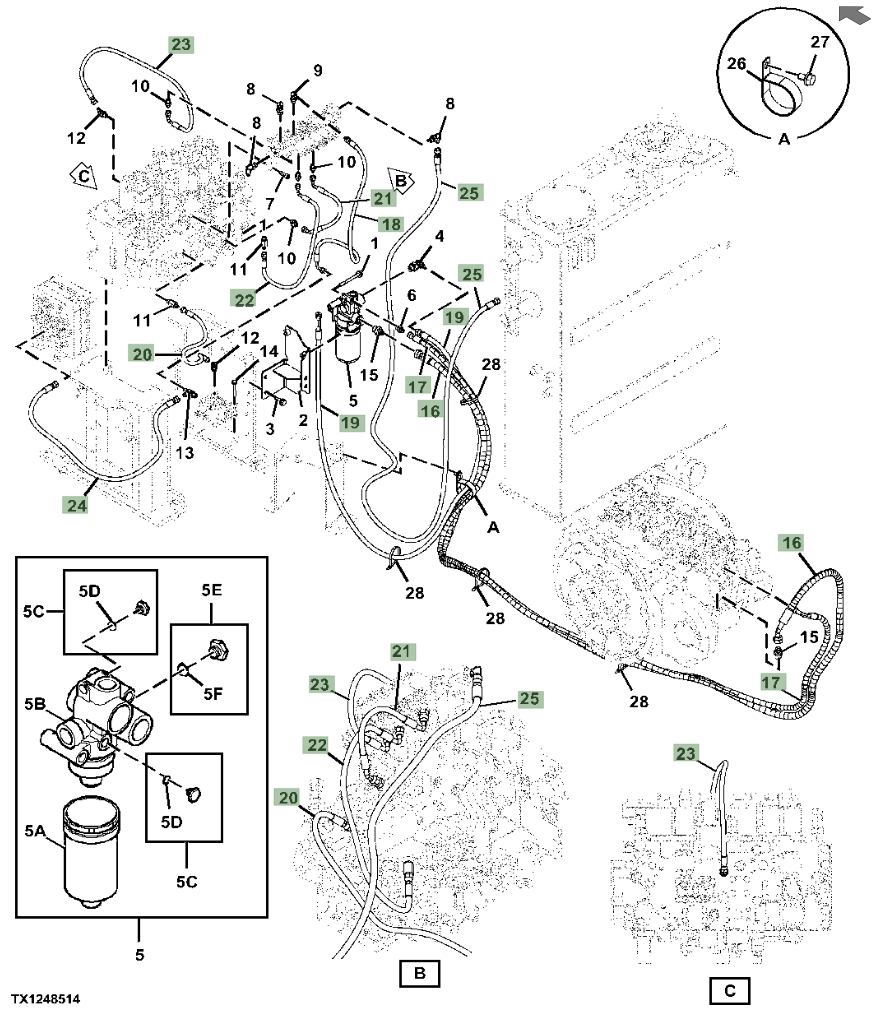

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4270447 before removing the hose.
Repair specifications
- Part number
- 4270447
- Diagram pipe number
- 25
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
