Individual hose record

4701773 Hose Repair Specifications

Excavator · Hitachi · ZX345USLC-6N · Hydraulic Tank

Finished length2,900 mm

Locate this hose

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4701773 before removing the hose.

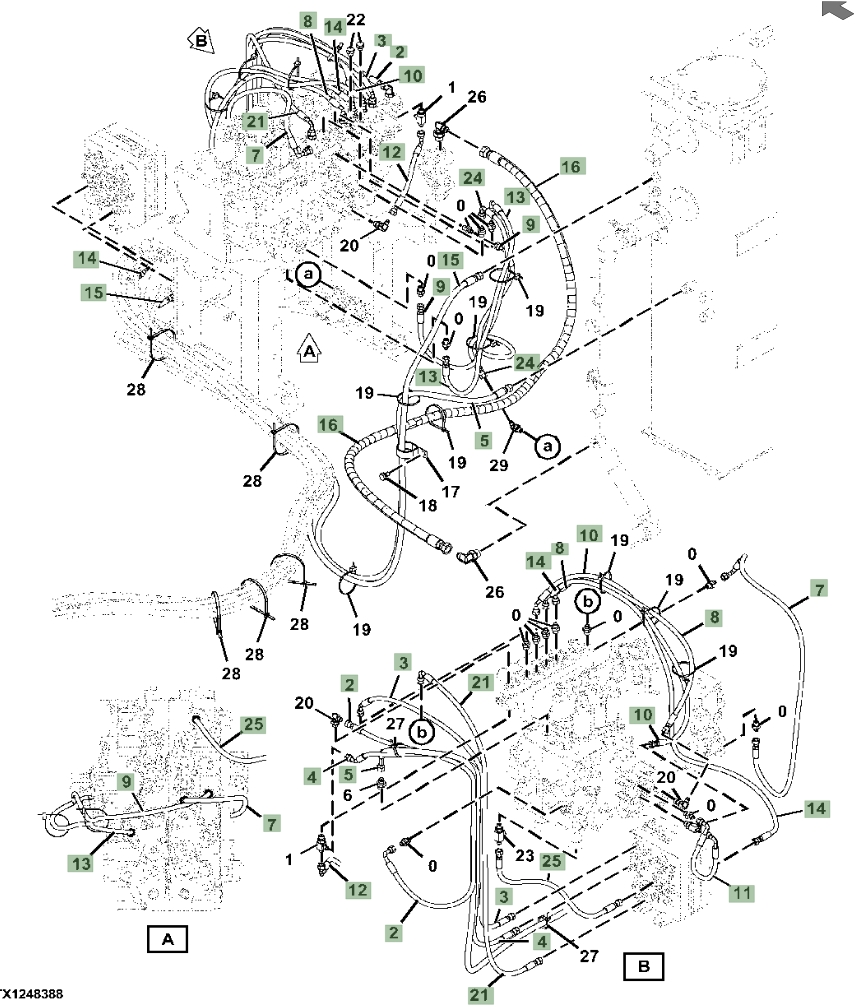

Hitachi ZX345USLC-6N installation diagram showing hydraulic hose 4701773 at Pipe No. 15 — Hitachi ZX345USLC-6NPart 4701773 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4701773
Diagram pipe number: 15
Installation route: 液压油箱~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,900 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

4413313

Installation route: 回油铁管(液压油箱)~回转马达

Length: 1,050 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 25

4270447

Installation route: 液压油箱~电磁阀

Length: 3,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4402260

Installation route: 液压油箱~电磁阀

Length: 3,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
