Individual hose record

DS2091168 Hose Repair Specifications

Excavator · Doosan · DX60R · Control Valve

Finished length260 mm

Locate this hose

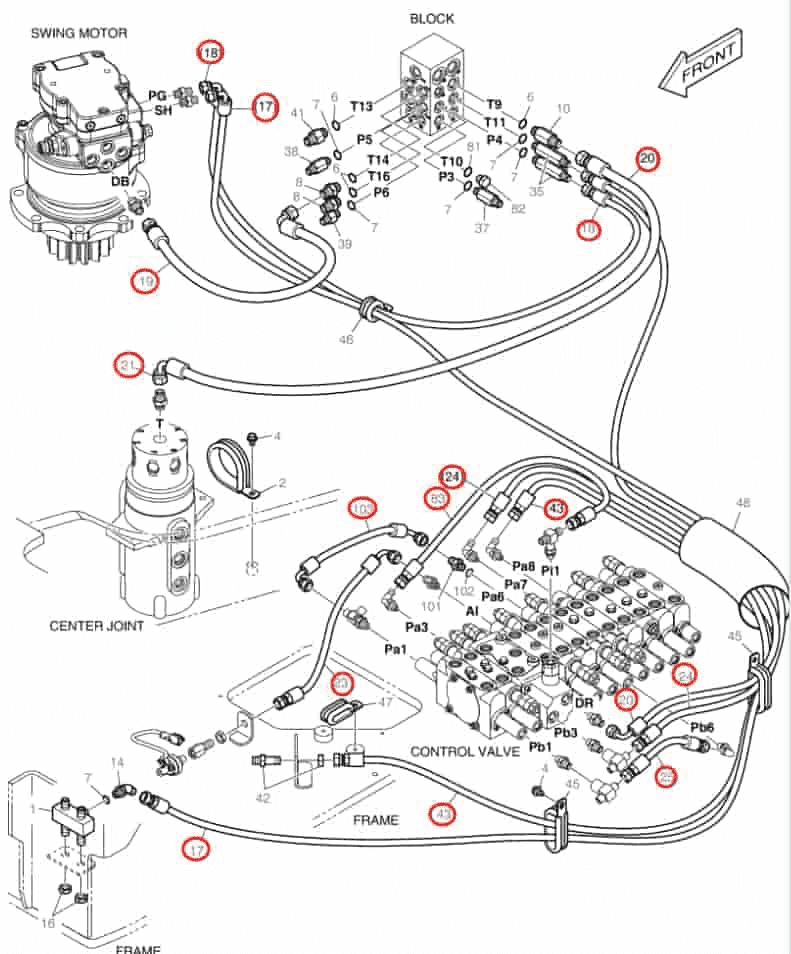

Installation diagram — Pipe No. 103

Locate Pipe No. 103 in the diagram, then confirm part number DS2091168 before removing the hose.

Part number: DS2091168
Diagram pipe number: 103
Installation route: 分配阀PA1口~分配阀PA6口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 260 mm
Working pressure: 22.5 MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 28

Installation route: 分配阀T3口~进回油阀T7口

Length: 1,500 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 23

Installation route: 分配阀AI口~压力传感器(车架)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 19

Installation route: 分配阀T2口~铁管(散热器)

Length: 2,000 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 92

Installation route: 分配阀PB10口~过渡阀块(车架)

Length: 780 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 43

Installation route: 分配阀PA8口~过渡接头(车架)

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
