Individual hose record
4683010 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Control Lever
Finished length550 mm
Locate this hose

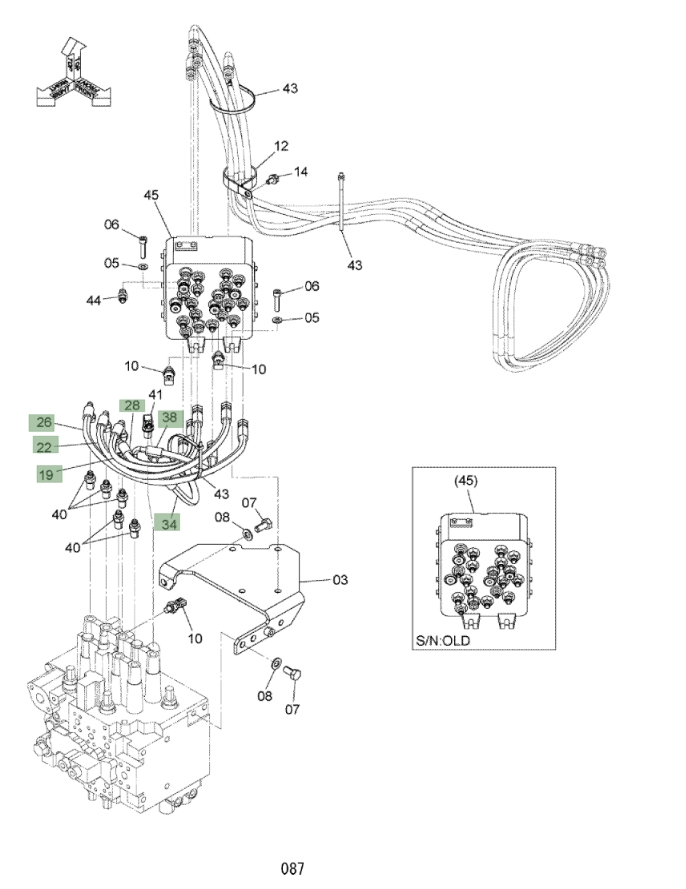

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4683010 before removing the hose.
Repair specifications
- Part number
- 4683010
- Diagram pipe number
- 19
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
