Individual hose record
4677448 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Boom Assembly
Finished length2,700 mm
Locate this hose

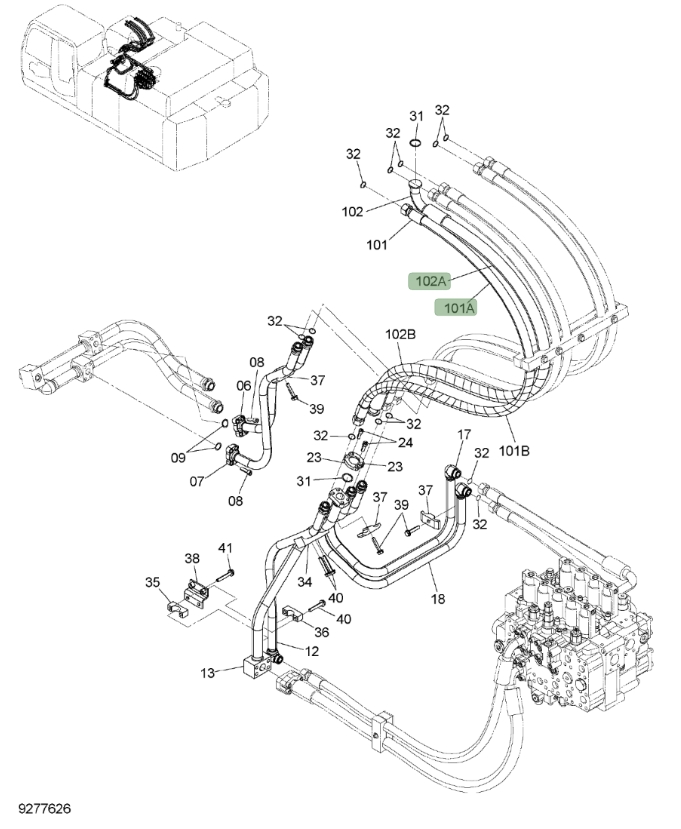

Installation diagram — Pipe No. 101A
Locate Pipe No. 101A in the diagram, then confirm part number 4677448 before removing the hose.
Repair specifications
- Part number
- 4677448
- Diagram pipe number
- 101A
- Installation route
- 大臂左1
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 2,700 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
